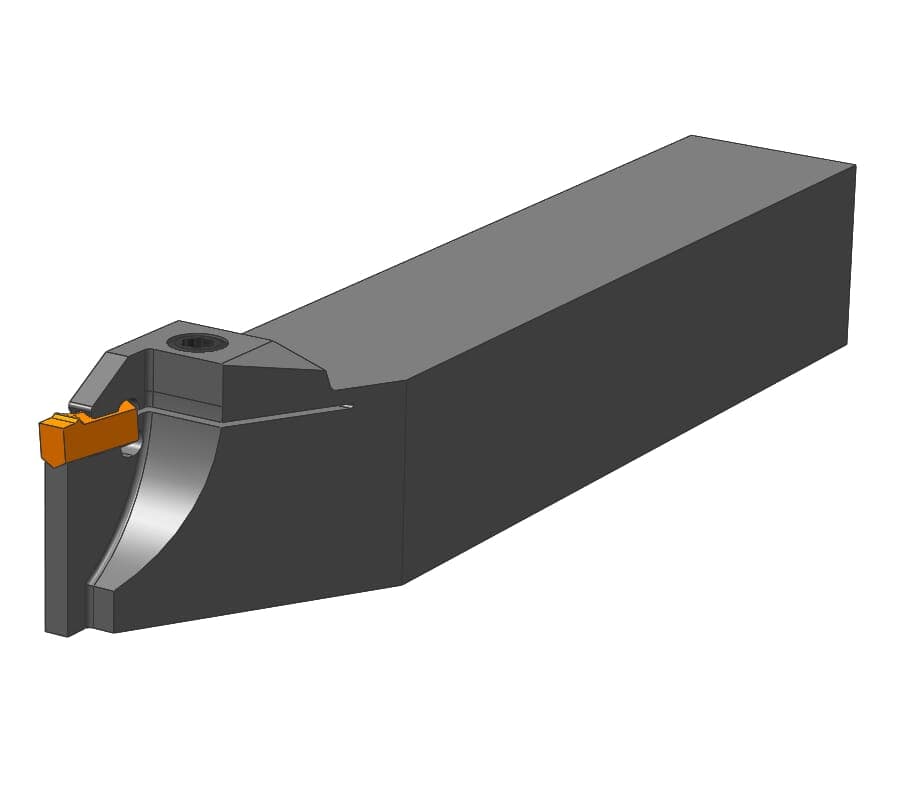

1 / 2: HORN LH100.2020.14
Parting-off
External grooving| Form _Form_ | A |
|---|---|
| Head height (HK) | 25 |
| Head length top _including cutting edge_ (l2) | 28.5 |
| Maximum insertion depth (tmax a) | 16 |
| Maximum workpiece diameter (Da min) |
Henter tekniske filer …
Kategorier:System H100 Square shank
Henter matchende værktøj…
| 42 |
| Peak height (h1) | 20 |
|---|
| Shank height (h) | 20 |
|---|
| Shank width (b) | 20 |
|---|
| Size (Größe) | 4 |
|---|
| Total length (including cutting insert) (l1) | 125 |
|---|
| Total length (l) | 125 |
|---|
