Toolholder System H100 with IC

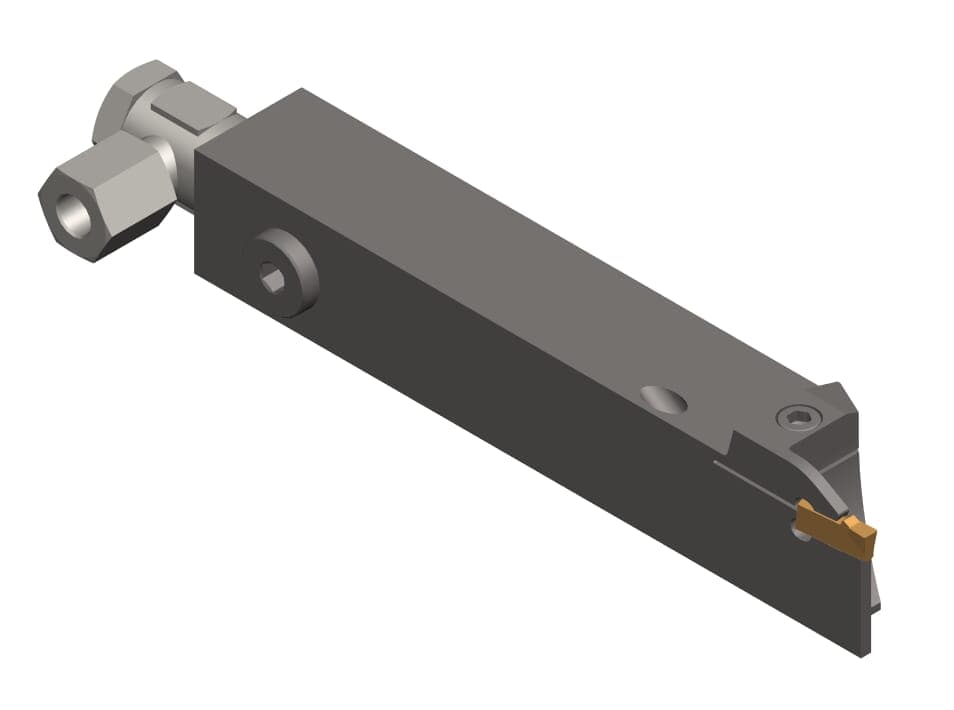

1 / 2: HORN LH100.2020.21.IK
Parting-off
External grooving
Internal cooling| Head height (HK) | 25 |
|---|---|
| Head length top _including cutting edge_ (l2) |
Henter tekniske filer …
Kategorier:Toolholder System H100 with IC
Henter matchende værktøj…
| 33.5 |
| Maximum insertion depth (tmax a) | 21 |
|---|
| Maximum workpiece diameter (Da min) | 42 |
|---|
| Peak height (h1) | 20 |
|---|
| Shank height (h) | 20 |
|---|
| Shank width (b) | 20 |
|---|
| Size (Größe) | 1 |
|---|
| Total length (including cutting insert) (l1) | 125 |
|---|
| Total length (l) | 125 |
|---|
