Parting-off
External grooving

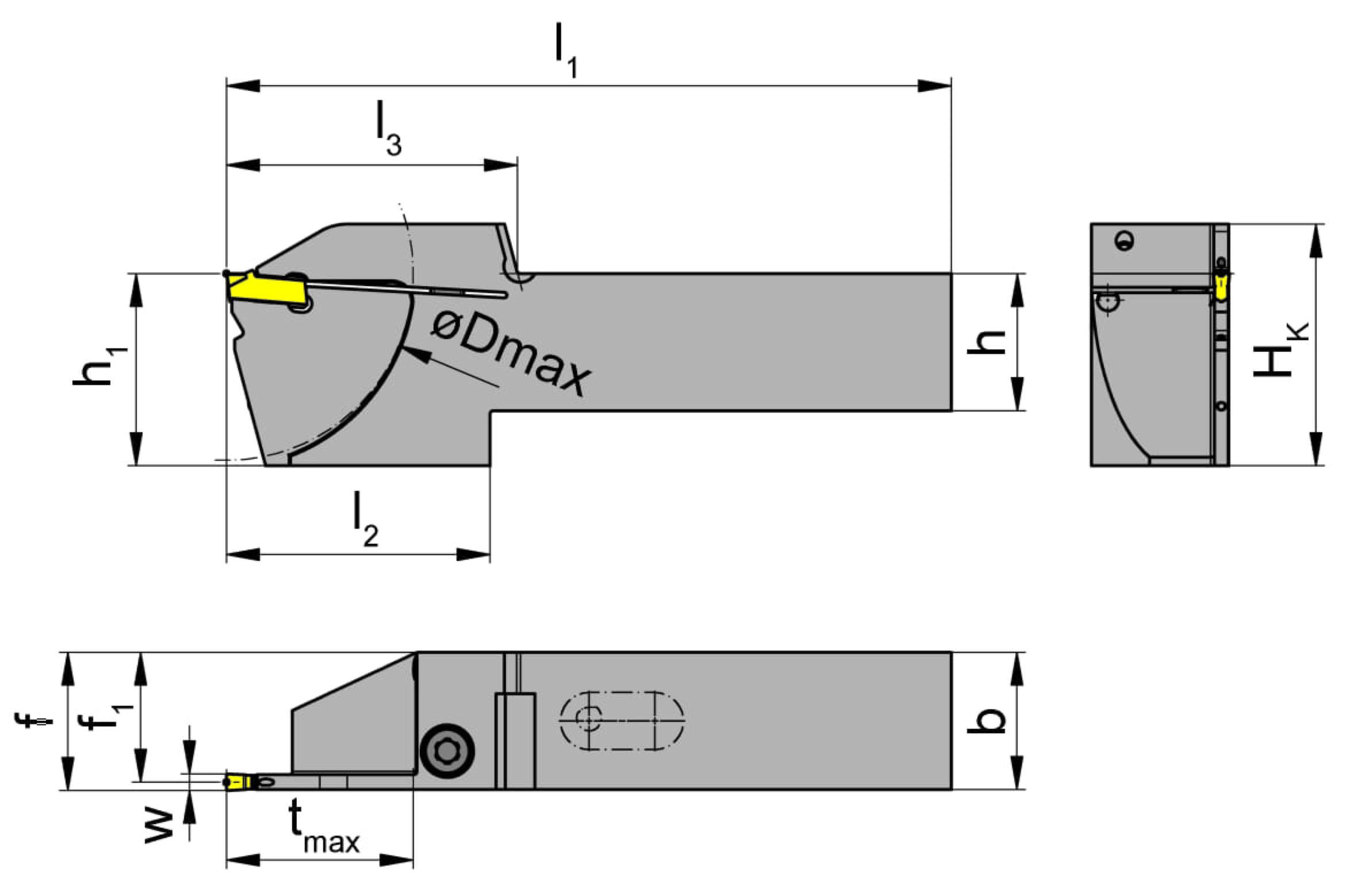

Targeted coolant| Head height (HK) | 39 |
|---|---|
| Head length (including cutting edge) (l2) |
Henter tekniske filer …
Kategorier:System H100 with IC
Henter matchende værktøj…
| 48 |
| Head length top _including cutting edge_ (l2) | 53 |
|---|
| Maximum insertion depth (tmax a) | 34 |
|---|
| Maximum workpiece diameter (Da min) | 68 |
|---|
| Peak height (h1) | 30 |
|---|
| Shank height (h) | 20 |
|---|
| Shank width (b) | 20 |
|---|
| Size (Größe) | 3 |
|---|
| Total length (including cutting insert) (l1) | 115 |
|---|
| Total length (l) | 115 |
|---|
