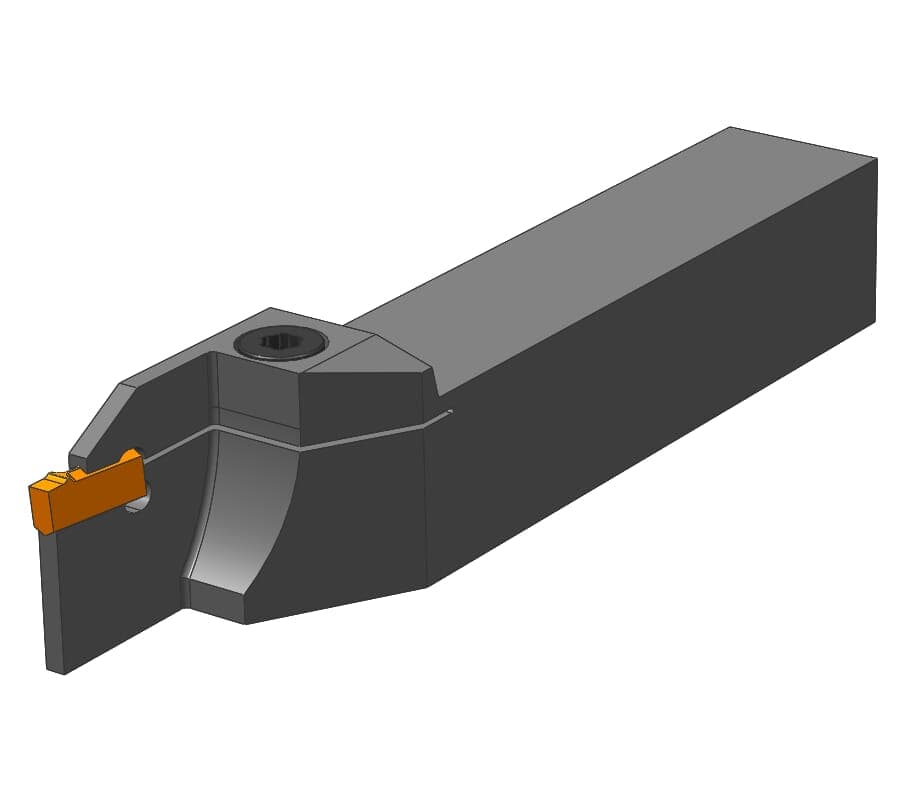

1 / 2: HORN LH100.2020.73
Parting-off
External grooving| Head height (HK) | 26 |
|---|---|
| Head length top _including cutting edge_ (l2) | 40 |
| Maximum insertion depth (tmax a) | 25 |
| Maximum workpiece diameter (Da min) | 50 |
| Peak height (h1) |
Henter tekniske filer …
Kategorier:System H100 Square shank
Henter matchende værktøj…
| 20 |
| Shank height (h) | 20 |
|---|
| Shank width (b) | 20 |
|---|
| Size (Größe) | 3 |
|---|
| Total length (including cutting insert) (l1) | 125 |
|---|
| Total length (l) | 125 |
|---|
