System H100 Square shank with IC

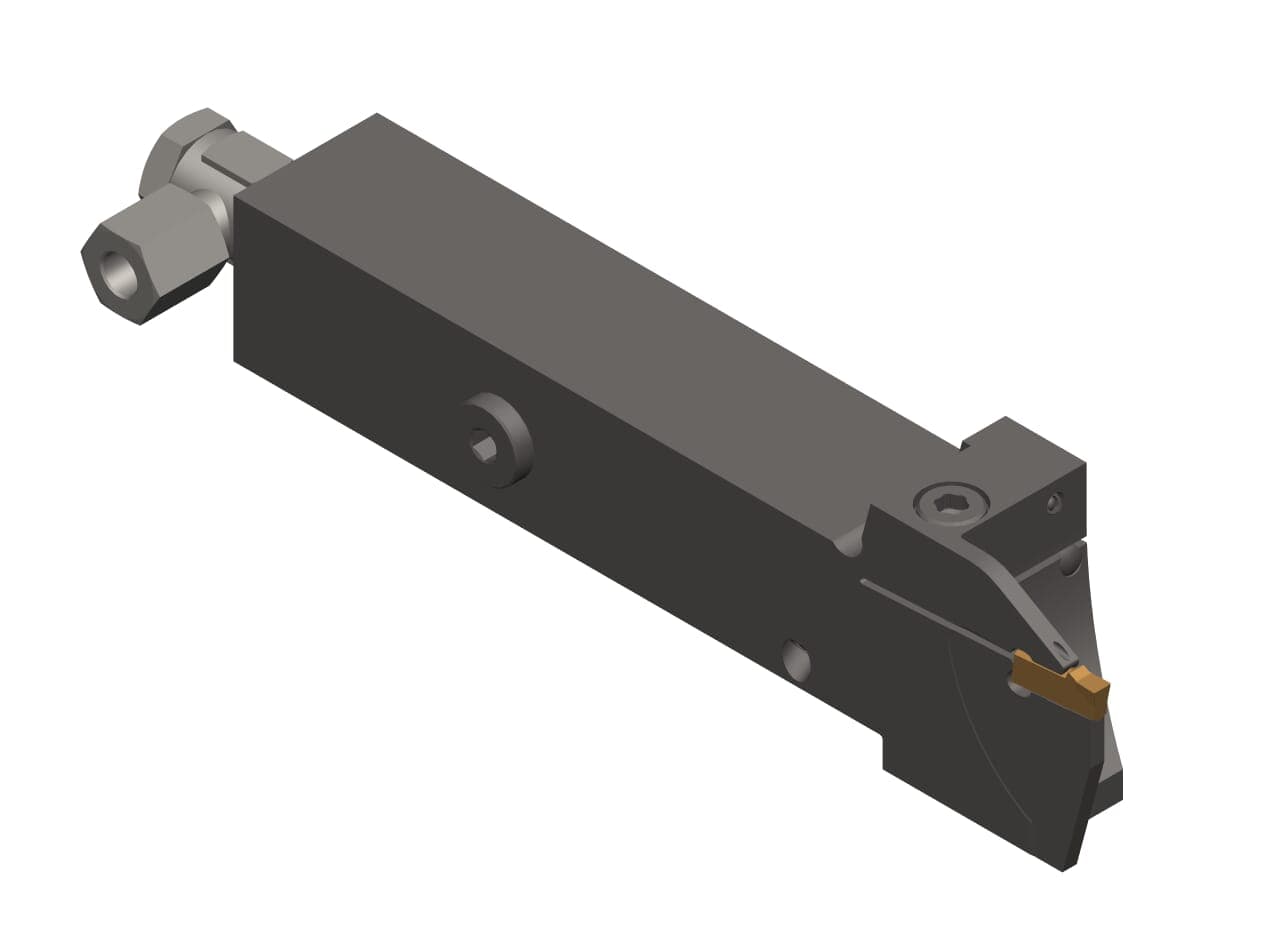

1 / 2: HORN LH100.2525.0.73 IK
Parting-off
External grooving
Targeted coolant| Head length (including cutting edge) (l2) | 37 |
|---|---|
| Head length top _including cutting edge_ (l2) |
Henter tekniske filer …
Kategorier:System H100 Square shank with IC
Henter matchende værktøj…
| 43 |
| Maximum insertion depth (tmax a) | 25.5 |
|---|
| Maximum workpiece diameter (Da min) | 50 |
|---|
| Peak height (h1) | 30 |
|---|
| Shank height (h) | 25 |
|---|
| Shank width (b) | 25 |
|---|
| Size (Größe) | 3 |
|---|
| Total length (including cutting insert) (l1) | 150 |
|---|
| Total length (l) | 150 |
|---|
