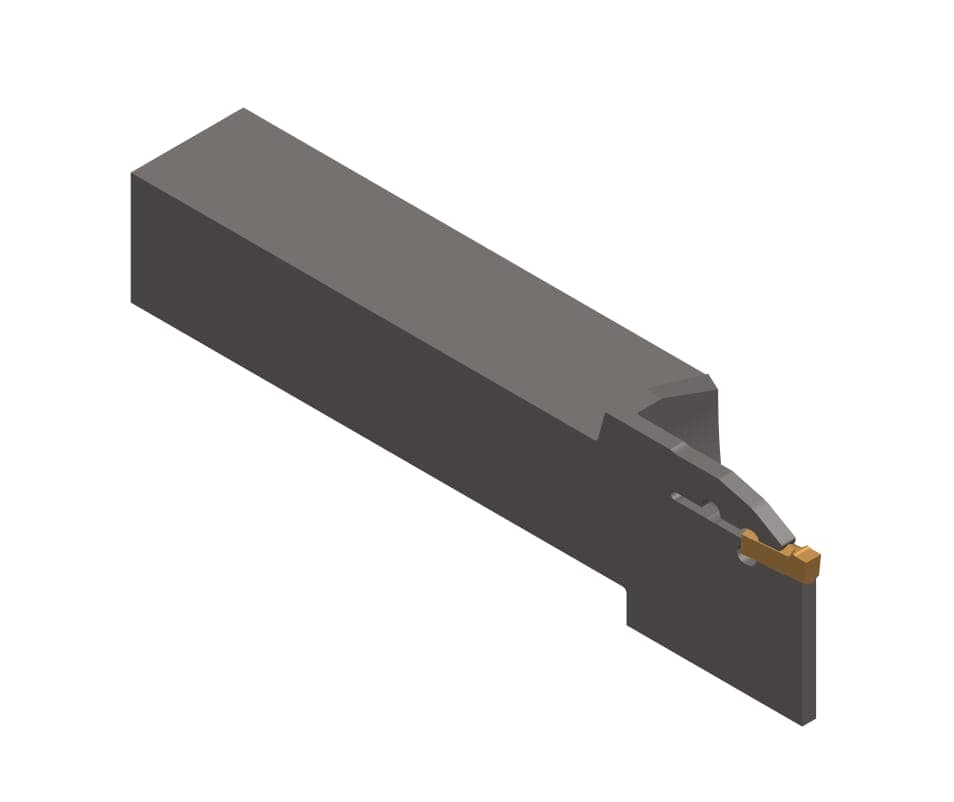

1 / 2: HORN LH100.2525.34
Parting-off| Form _Form_ | B |
|---|---|
| Head height (HK) | 31.6 |
| Head length bottom without insert (l2) | 40 |
| Head length top _including cutting edge_ (l2) | 46.5 |
| Maximum insertion depth (tmax a) | 40.5 |
| Maximum workpiece diameter (Da min) | 81 |
| Peak height (h1) | 32 |
| Shank height (h) |
Henter tekniske filer …
Kategorier:System H100 Square shank
Henter matchende værktøj…
| 25 |
| Shank width (b) | 25 |
|---|
| Size (Größe) | 4 |
|---|
| Total length (including cutting insert) (l1) | 150 |
|---|
| Total length (l) | 150 |
|---|
