1 / 2: HORN LH100.3208.84
Parting-off

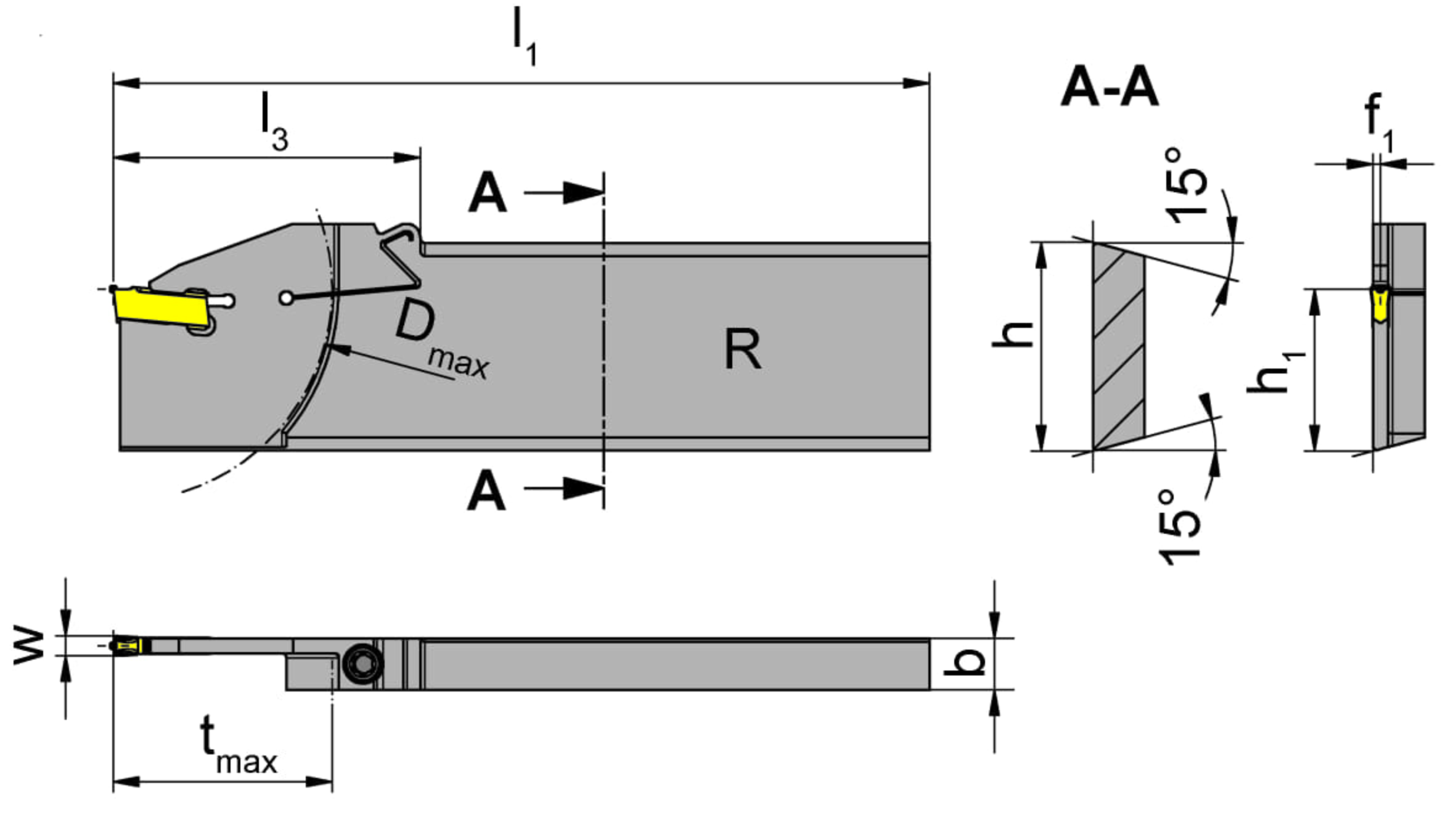

External grooving| Head height (h) | 32 |
|---|---|
| Head length top _including cutting edge_ (l2) | 47 |
| Machine type (Maschinentyp) | TraubTNX65/42, IndexC65 |
| Maximum insertion depth (tmax a) | 33.5 |
Henter tekniske filer …
Kategorier:System H100 for Traub / Index
Henter matchende værktøj…
| Maximum workpiece diameter (Da min) |
|---|
| 65 |
| Peak height (h1) | 24.8 |
|---|
| Plating seat size (Größe) | 4 |
|---|
| Total length (including cutting insert) (l1) | 125 |
|---|
| Total length (l) | 125 |
|---|
| Width, thickness sword (b) | 8 |
|---|
