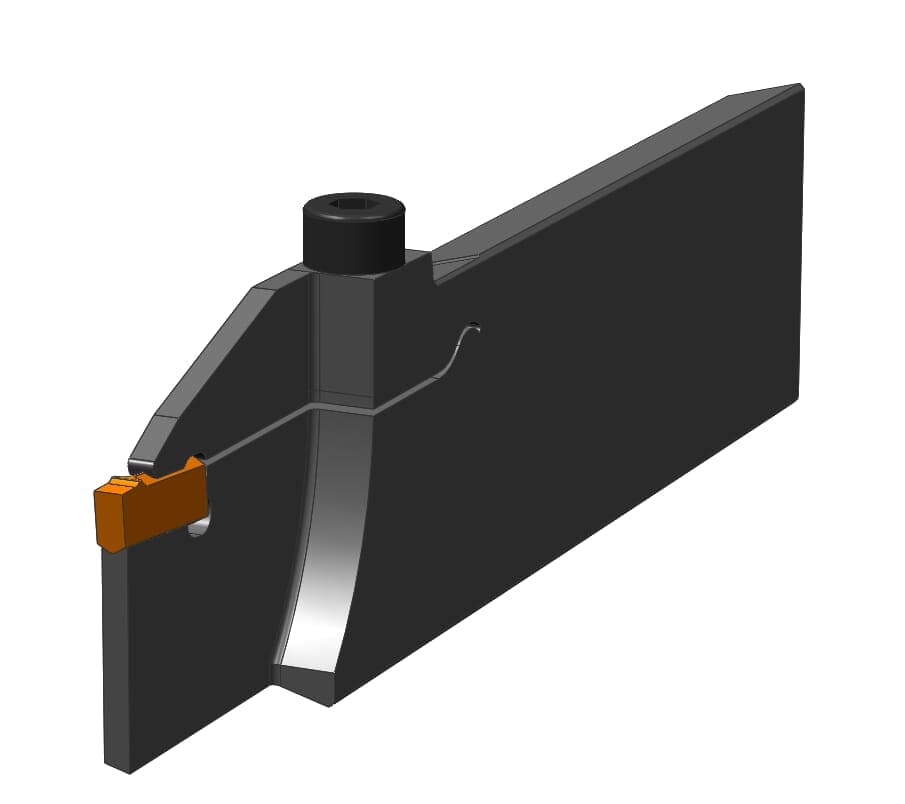

1 / 2: HORN LH100.3280.73L
Parting-off

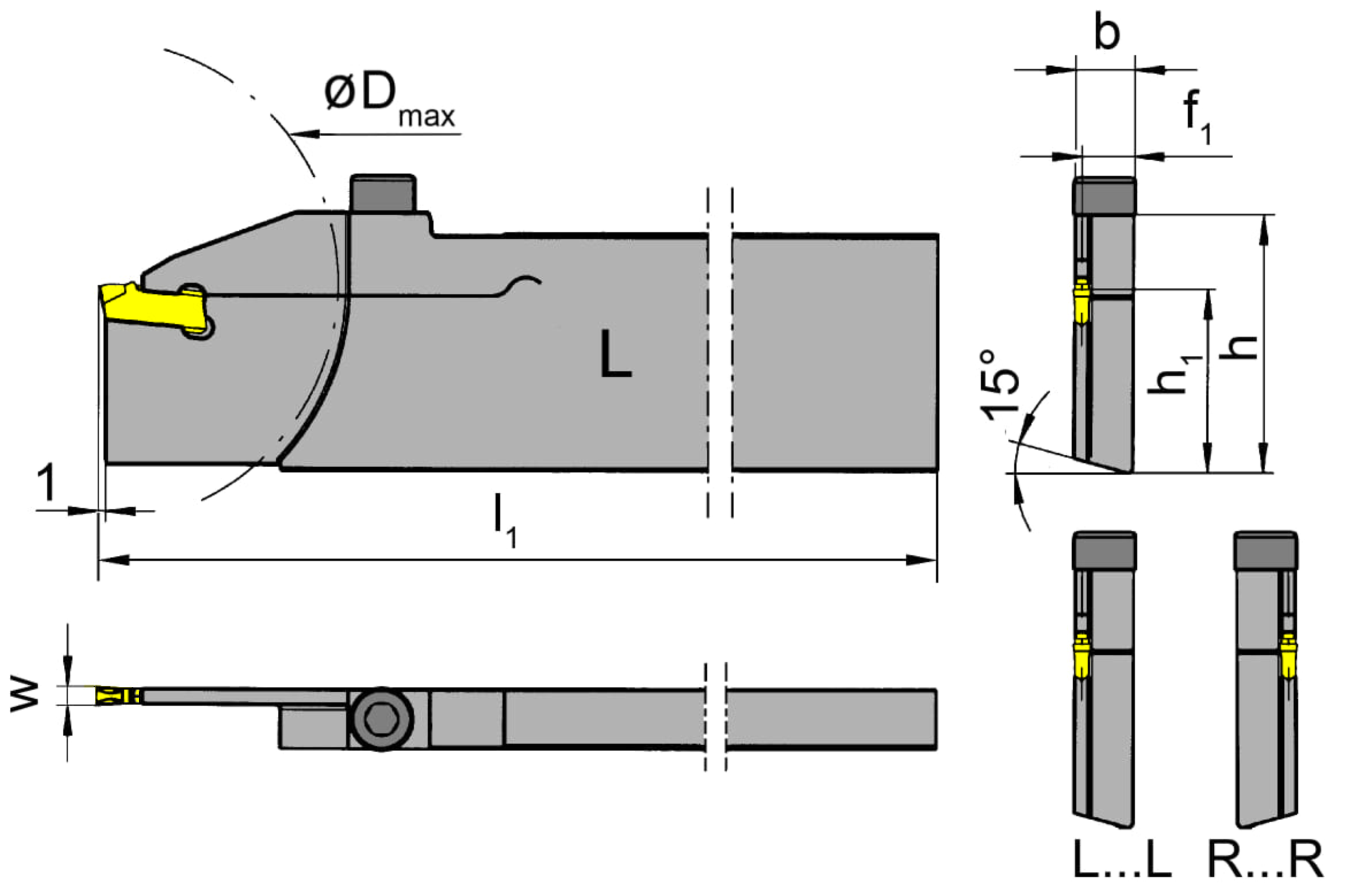

External grooving| Head height (h) | 32 |
|---|---|
| Maximum insertion depth (tmax a) | 32.5 |
| Maximum workpiece diameter (Da min) | 65 |
| Peak height (h1) | 24.8 |
| Plating seat size (Größe) |
Henter tekniske filer …
Kategorier:System H100 for Traub / Index
Henter matchende værktøj…
| 3 |
| Total length (including cutting insert) (l1) | 130 |
|---|
| Total length (l) | 130 |
|---|
| Width, thickness sword (b) | 7.9 |
|---|
