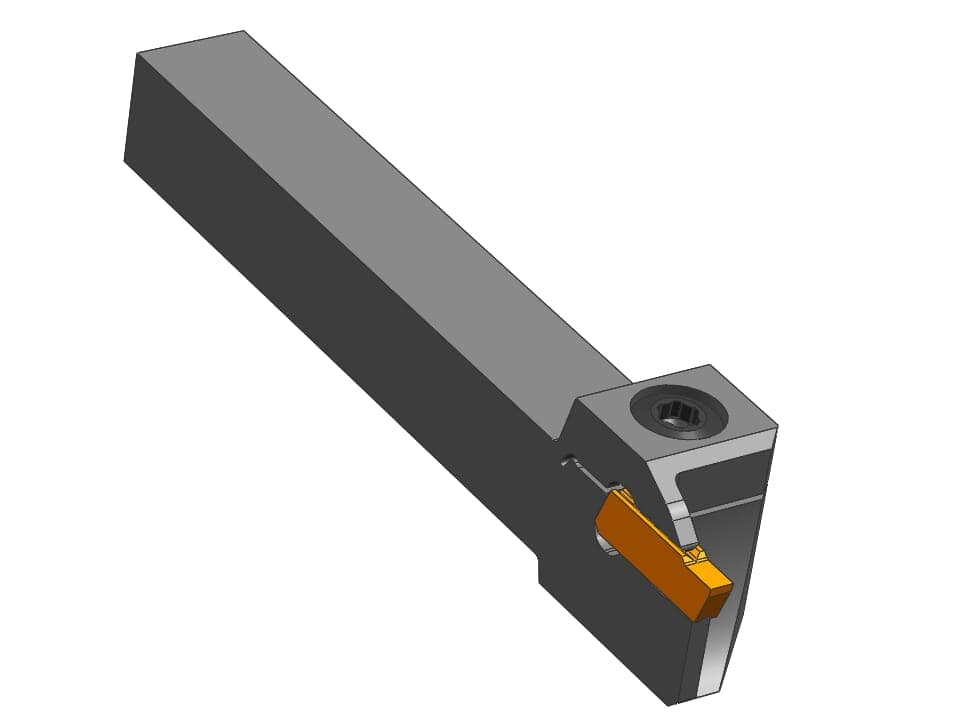

1 / 2: HORN LH223.1010.01
Grooving and side turning
Parting-off
External grooving| Clamping range (Spannbereich) | 2 |
|---|---|
| Head length (including cutting edge) (l2) | 20 |
Henter tekniske filer …
Kategorier:System H223 Square shank
Henter matchende værktøj…
| Head width (b1) | 12 |
|---|
| Maximum insertion depth (tmax a) | 8 |
|---|
| Maximum workpiece diameter (Da min) | 25 |
|---|
| Peak height (h1) | 12 |
|---|
| Plating seat size (Größe) | 1 |
|---|
| Shank height (h) | 10 |
|---|
| Shank width (b) | 10 |
|---|
| Total length (including cutting insert) (l1) | 80 |
|---|
| Total length (l) | 80 |
|---|
