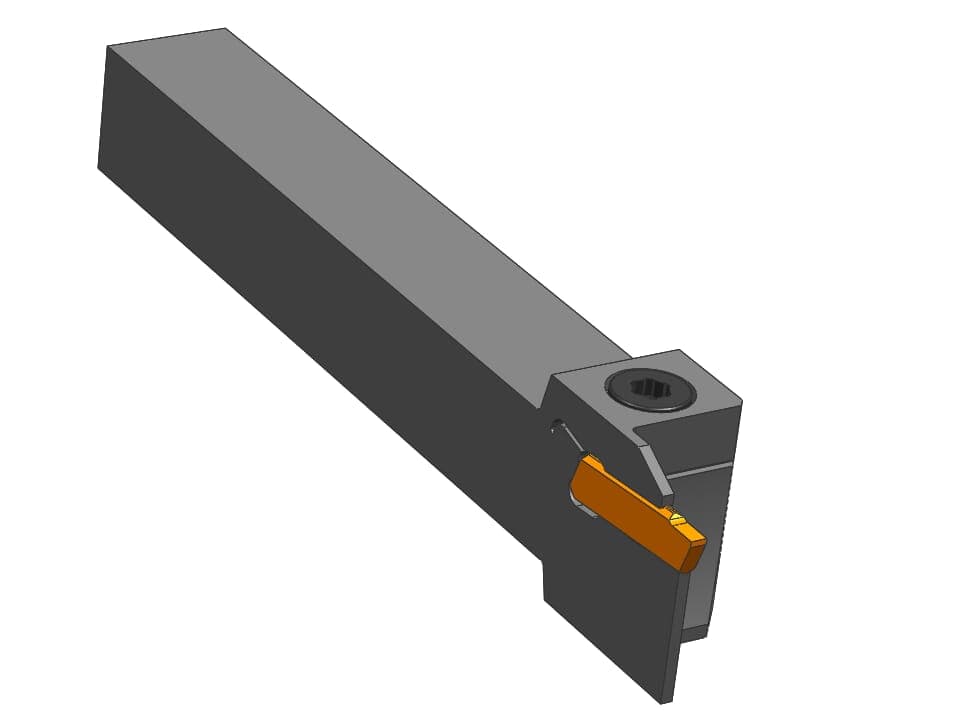

1 / 2: HORN LH224.2525.01
Parting-off| Clamping range maximum (Spannbereich) | 2.4 |
|---|---|
| Clamping range minimum (Spannbereich) | 2 |
| Maximum insertion depth (tmax a) | 14 |
| Maximum workpiece diameter (Da min) | 80 |
| Peak height (h1) | 25 |
| Plating seat size (Größe) | 1 |
| Shank height (h) | 25 |
| Shank width (b) |
Henter tekniske filer …
Kategorier:Toolholder System H224
Henter matchende værktøj…
| 25 |
| Total length (including cutting insert) (l1) | 150 |
|---|
| Total length (l) | 150 |
|---|
| Width of groove (w) | 2 |
|---|
