Toolholder System H224 for Traub

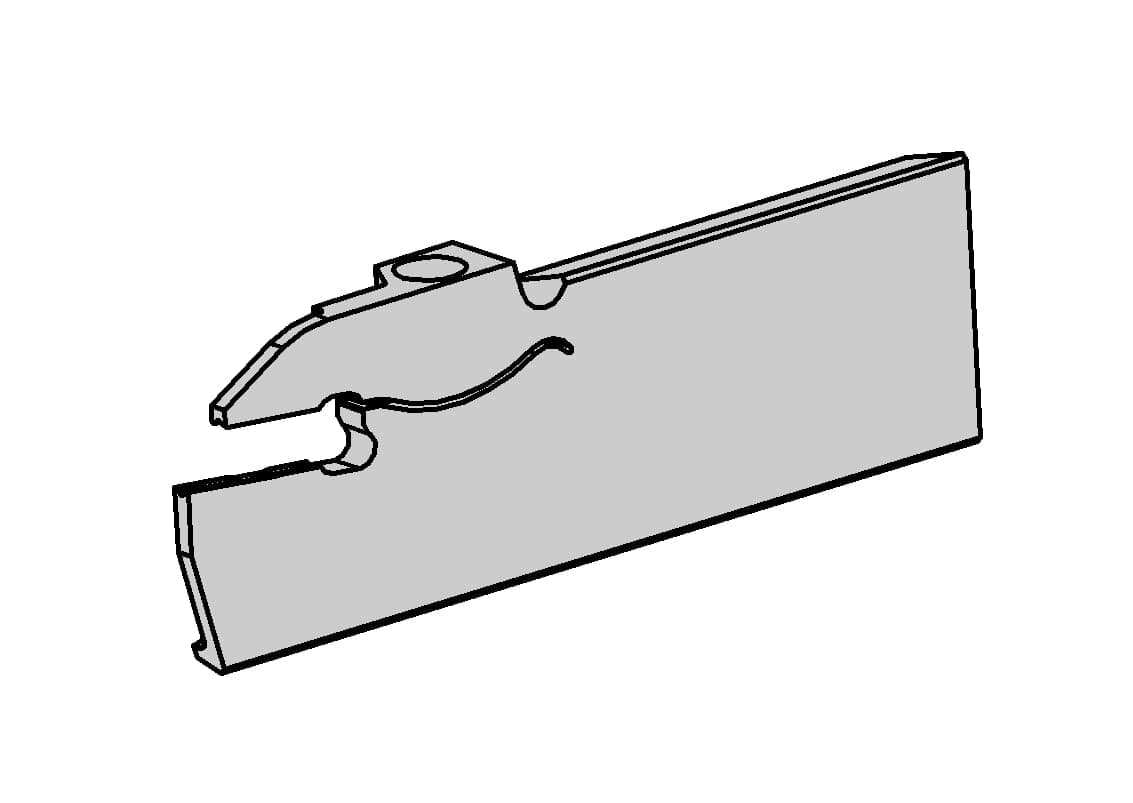

1 / 2: HORN LH224.2608.20.T.81 TRAUB TNL 18
Parting-off
External grooving| Clamping range (Spannbereich) | 2 |
|---|---|
| Head height (h) | 26 |
| Maximum insertion depth (tmax a) | 11 |
| Maximum workpiece diameter (Da min) | 20 |
| Peak height (h1) |
Henter tekniske filer …
Kategorier:Toolholder System H224 for Traub
Henter matchende værktøj…
| 21.4 |
| Plating seat size (Größe) | 1 |
|---|
| Total length (including cutting insert) (l1) | 88 |
|---|
| Total length (l) | 88 |
|---|
| Width, thickness sword (b) | 8 |
|---|
| Width of groove (w) | 2 |
|---|
