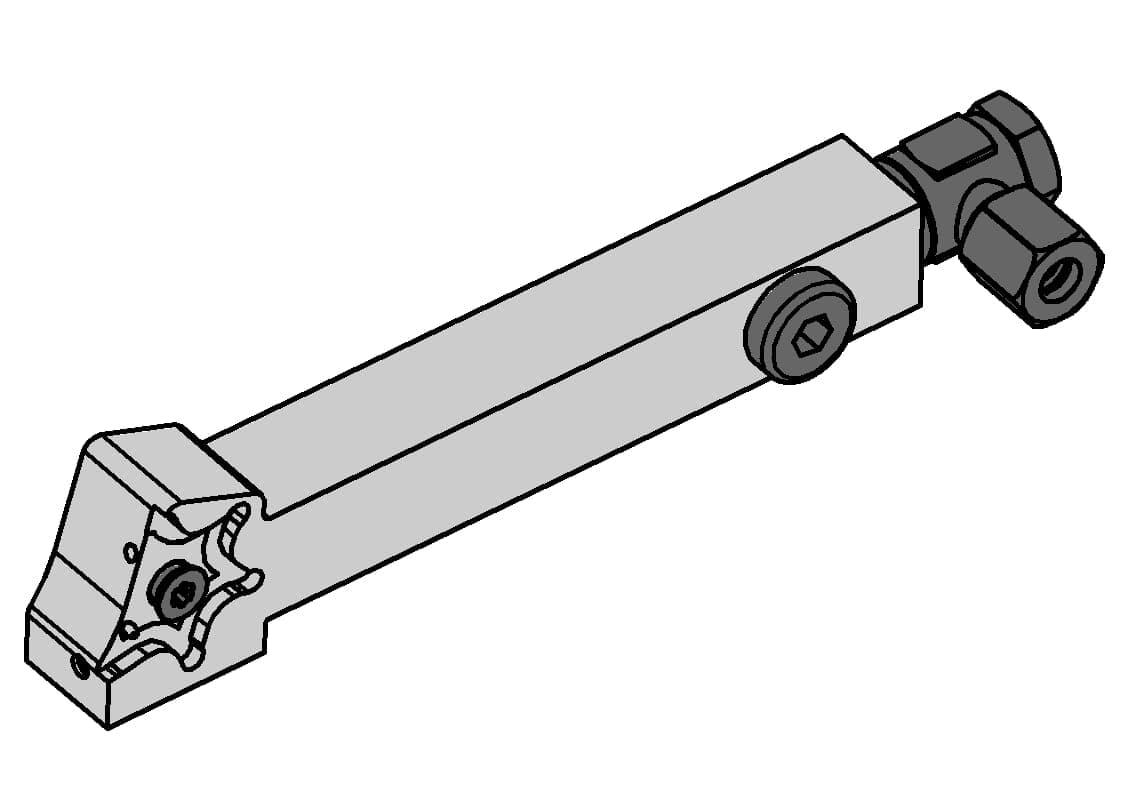

Toolholder System H64T with IC VDI
Grooving and side turning
Parting-off
External grooving
Targeted coolantHenter tekniske filer …
Kategorier:Toolholder System H64T with IC VDI
Henter matchende værktøj…
| Adjustment dimension locating face insert (f1) | 13.8 |
|---|---|
| Coolant supply (Kühlmittelanschluss) | G1/8 |
| Cutting insert width (l4) | 1 |
| Head length (including cutting edge) (l2) | 25 |
| Head length top _including cutting edge_ (l2) | 24.5 |
| Peak height (h1) | 21 |
| Shank height (h) | 16 |
| Shank width (b) | 16 |
| Total length (including cutting insert) (l1) | 125 |
| Total length (l) | 125 |
| plating-seat-size | 1 |
