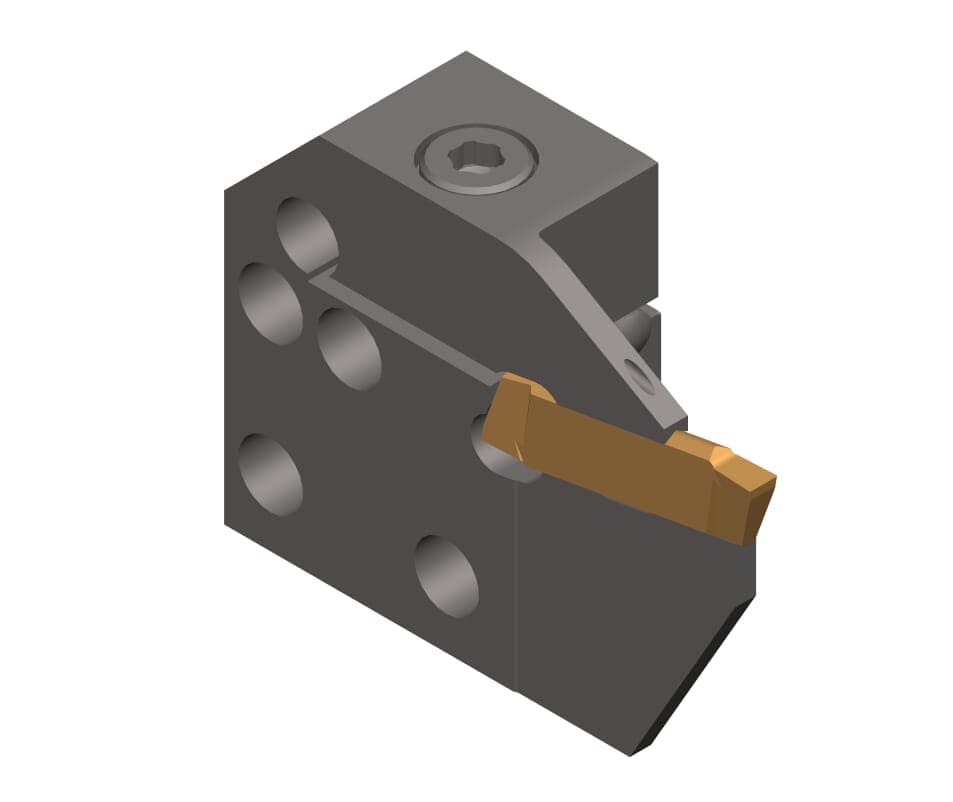

1 / 2: HORN LNK220.3215.4.05.IK
Parting-off
External grooving

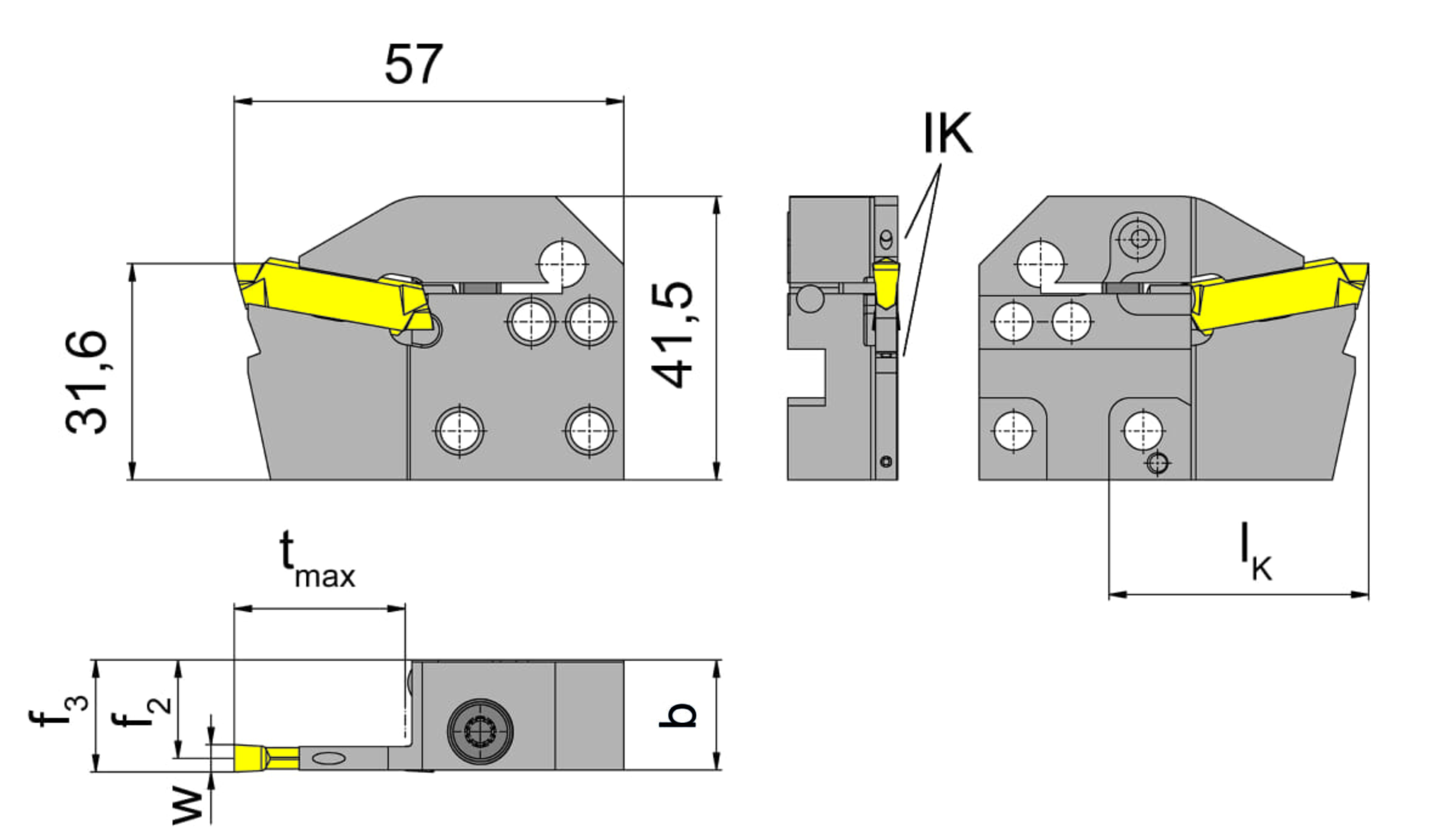

Targeted coolant| Adjustment dimension of system cassette form(f3) | f2+w/2 |
|---|---|
| Cassette thickness (b) |
Henter tekniske filer …
Henter matchende værktøj…
| 15.95 |
| Clamping range maximum (Spannbereich) | 5.09 |
|---|
| Clamping range minimum (Spannbereich) | 4.4 |
|---|
| Maximum depth of groove (tmax) | 25 |
|---|
| Total length (including cutting insert) (l1) | 57 |
|---|
| Total length (l) | 57 |
|---|
