Parting-off
External grooving

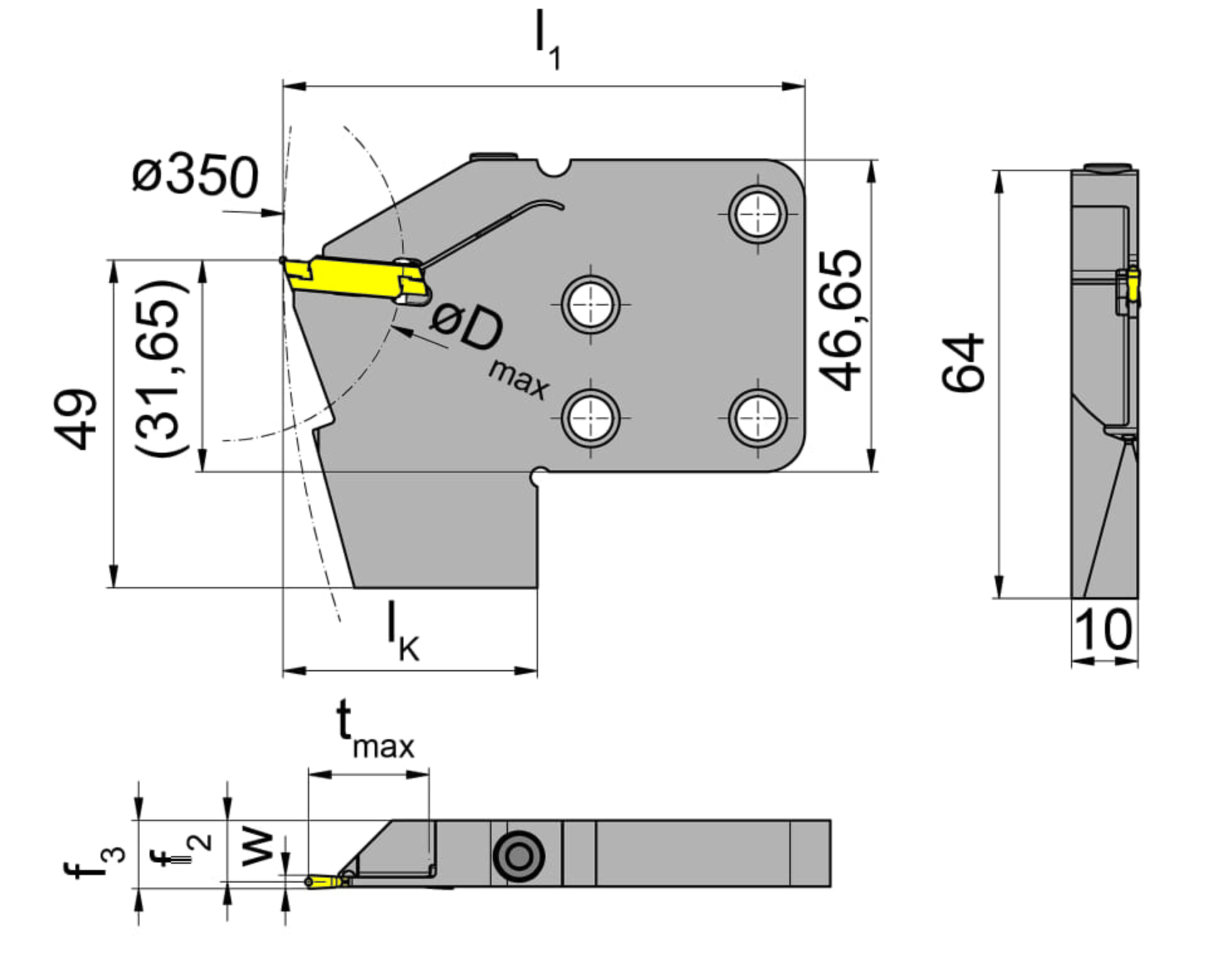

Targeted coolant| Adjustment dimension of system cassette form(f3) | f2+w/2 |
|---|---|
| Maximum workpiece diameter (Da min) |
Henter tekniske filer …

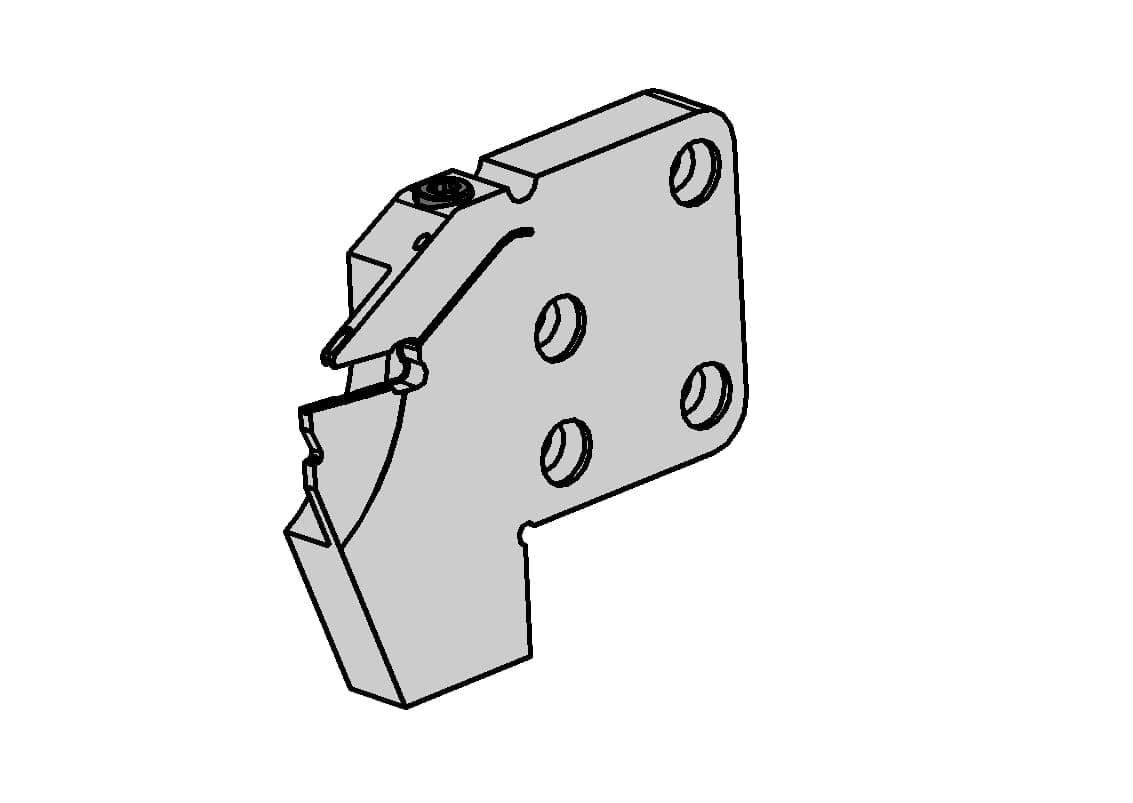

Kategorier:Cassettes NK224.0845 with IC
Henter matchende værktøj…
| 54 |
| Maximum depth of groove (tmax) | 18 |
|---|
| Total length (including cutting insert) (l1) | 78 |
|---|
| Total length (l) | 78 |
|---|
| Width of groove (w) | 2 |
|---|
Lagerstatus og købsmuligheder kontrolleres …
