Parting-off
External grooving

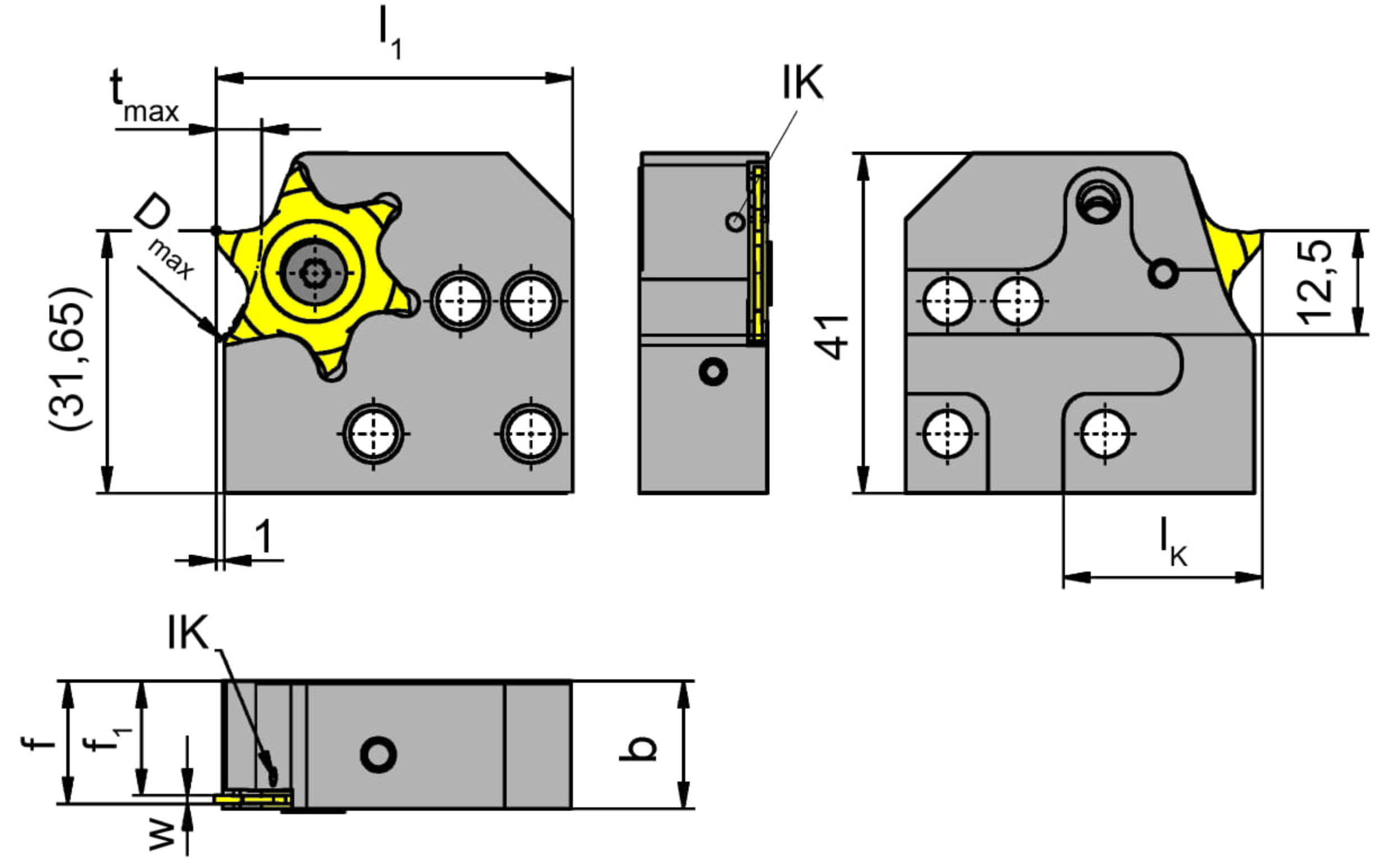

Targeted coolant| Adjustment dimension locating face insert (f1) | 12.7 |
|---|---|
| Adjustment dimension of system cassette form(f) |
Henter tekniske filer …

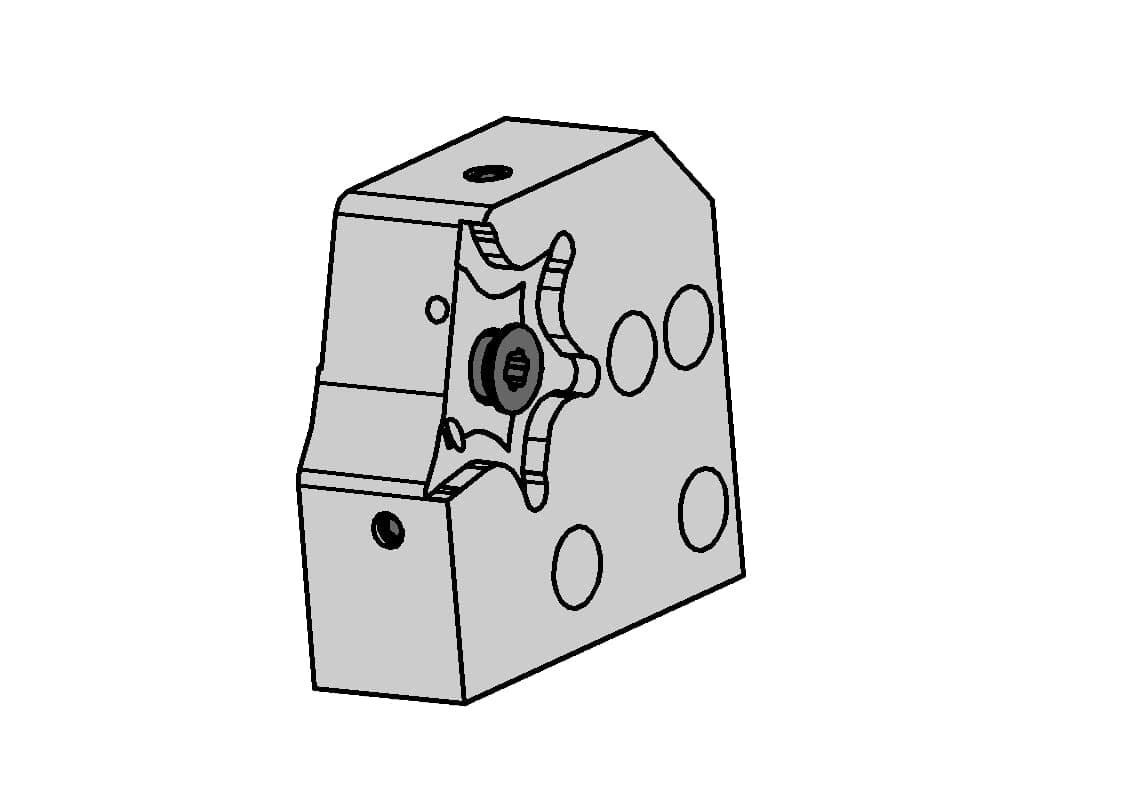

Kategorier:Cassettes NK64T
Henter matchende værktøj…
| f1+w+a1 |
| Cassette thickness (b) | 15.4 |
|---|
| Maximum workpiece diameter (Da min) | 100 |
|---|
| Maximum depth of groove (tmax) | 5.5 |
|---|
| Plating seat size (Größe) | 2 |
|---|
| Total length (including cutting insert) (l1) | 43 |
|---|
| Total length (l) | 43 |
|---|
| dimension insert to face holder met | 1 |
|---|
