| _application | /conversions/RS27401200310_PICTO.JPG |
|---|---|
| _icon | abstechen_20210506_153854505.jpg; einstechen.jpg; geometrie_10.jpg; teilschnitt.jpg |
| _download | /documents/LS27402000410_20210628_150746598.DXF; /documents/LS27402000410_20240117_011748640.STP |
| _drawing | /conversions/S274-1_20170127_185932319.JPG |

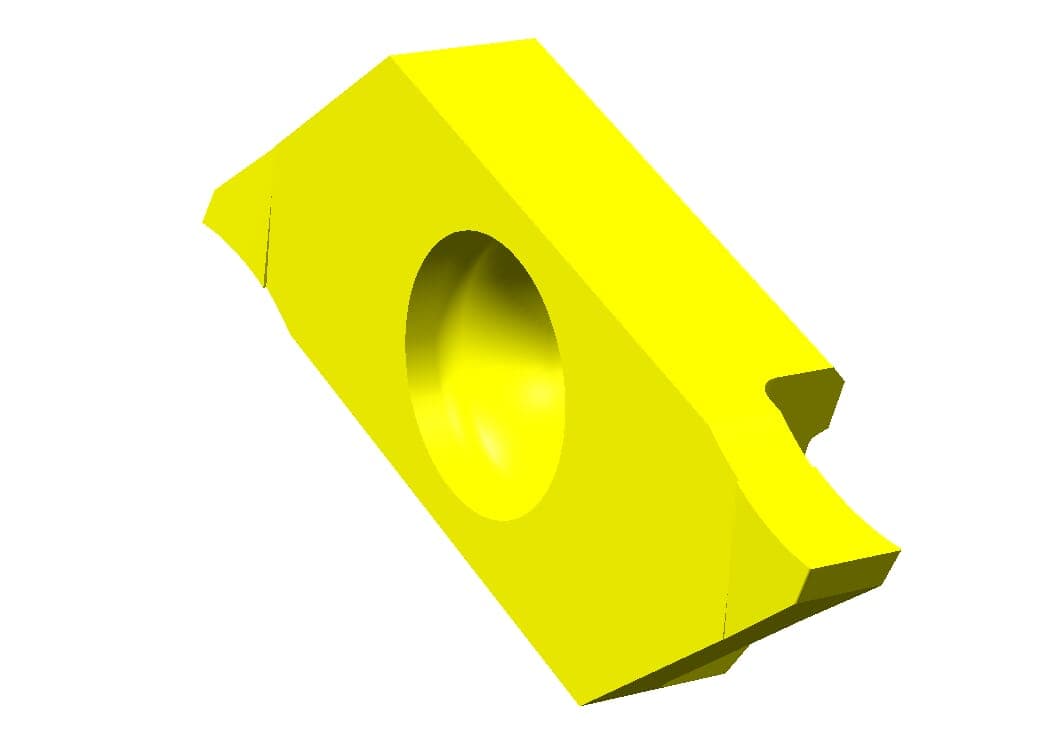

| _main_image | /conversions/LS27402000410.JPG |
| Corner radius (r) | 0.05 |
| eclass shortcut | 21-18-20-03 |
| Maximum depth of groove (tmax) | 4 |
| eclass | 21-18-20-03:Wendeschneidplatte, rhombisch (ACD549009) |
| DIN_SSC | HORN-274040000L |
| ISO-SSC | HORN274040000L$$$$$ |
| Katalog-SSC | 274040L |
| productnr-sap | LS27402000410TH35 |
| Plating seat size (Größe) | 4 |
| Width of groove (w) | 2 |
