| _application | /conversions/RS27405350620_PICTO.JPG |
|---|---|
| _icon | aussen_laengsdrehen.jpg |
| _download | /documents/LS27405550620_20210629_234504588.DXF; /documents/LS27405550620_20240117_012345624.STP |
| _drawing | /conversions/S274_2_20161108_114505214.JPG |

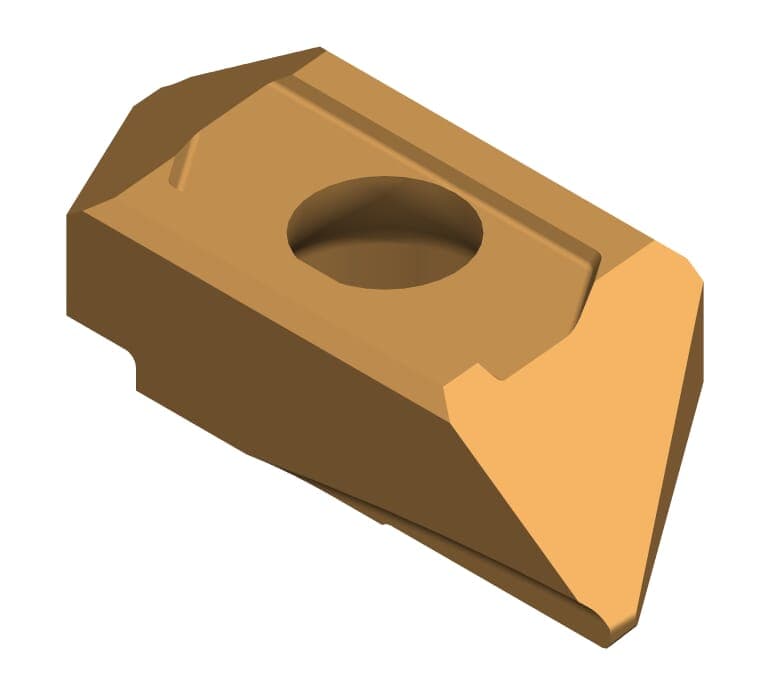

| _main_image | /conversions/LS27405550620.JPG |
| Corner radius (r) | 0.2 |
| eclass shortcut | 21-18-20-03 |
| eclass | 21-18-20-03:Wendeschneidplatte, rhombisch (ACD549009) |
| Cancellation (a) | 0.1 |
| DIN_SSC | HORN-274040000L |
| ISO-SSC | HORN274040000L$$$$$ |
| Katalog-SSC | 274040L |
| Maximum stepover (ap) (ap) | 6 |
| productnr-sap | LS27405550620TH35 |
| Plating seat size (Größe) | 4 |
| Width of groove (w) | 0.5 |
| Cutting angle (γ) | 5 |
| Parting off chamfer (α1) | 55 |
| Wiper angle (α2) | 0 |
