Inserts type 312 with sintered geometry, depth of groove up to 5 mm

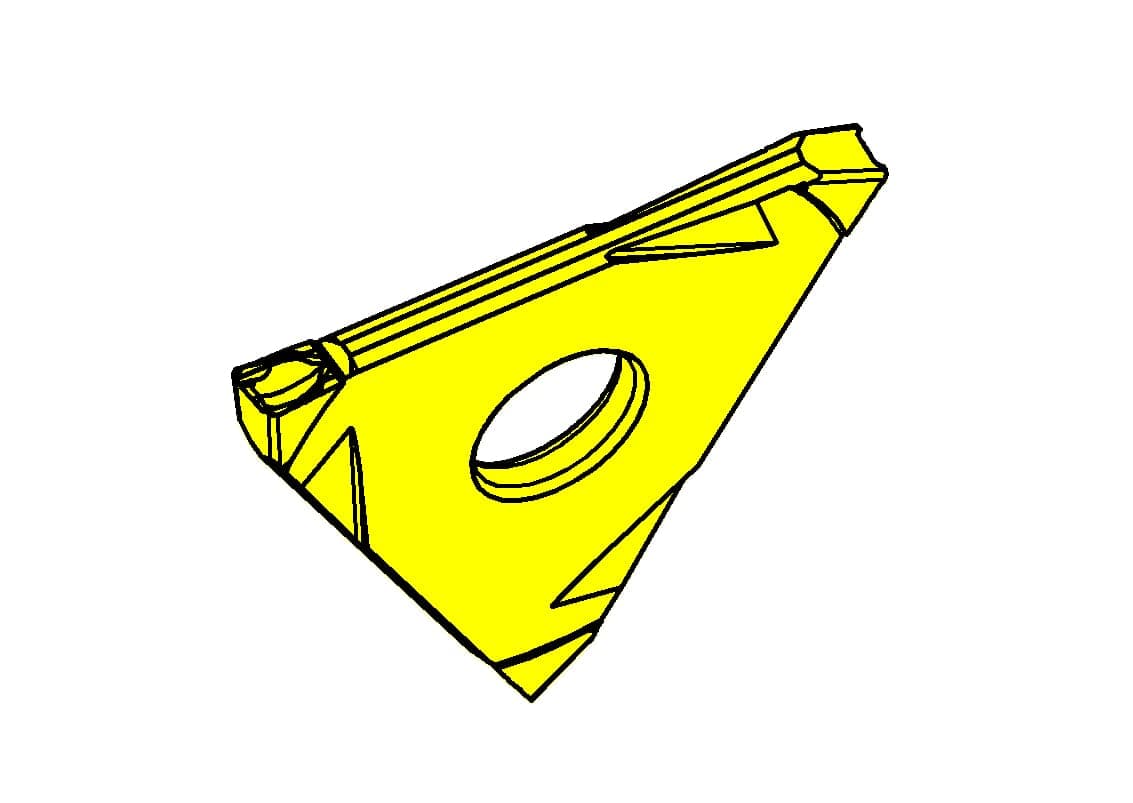

HORN LS312.0530.C2 TF46

Varenr.: HLS3120530C2TF46

HORN LS312.0530.C2 TF46

Tekniske billeder


Parting-off

Geometry C

Tekniske specifikationer
Cancellation (a1)	0.25
Corner radius (r)	0.2
Parting off chamfer (α)	5
Plating seat size (Größe)	3
Width of groove (w)	3

Tekniske filer

Henter tekniske filer …

Kategorier:Inserts type 312 with sintered geometry, depth of groove up to 5 mm
