SCHLITZFRÄSEN (H_M101...16-30_3)

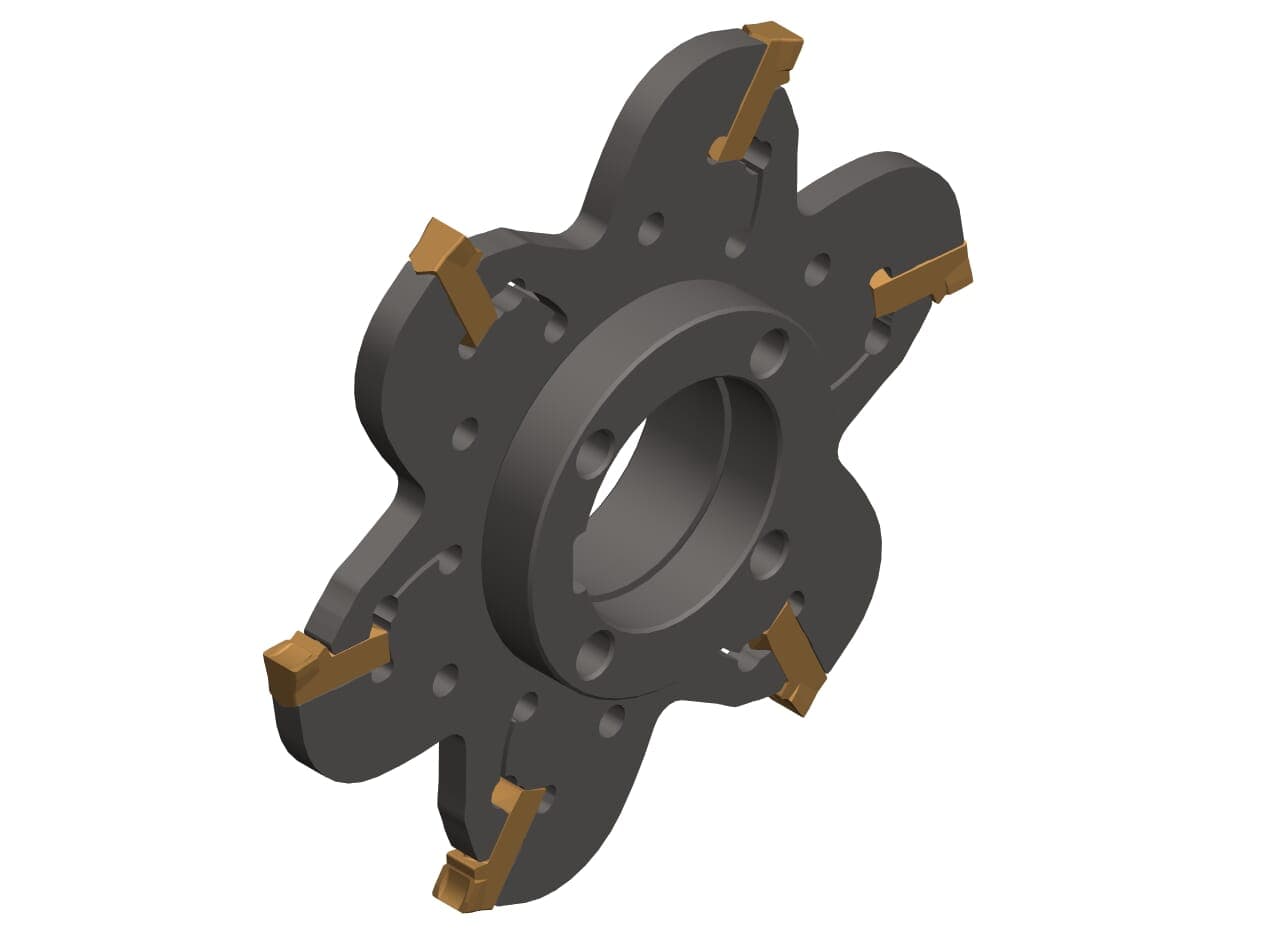

1 / 2: HORN M101.0080.22.40
Parting-off
Slotting| Cutting width maximum (Schneidbreite) | 4.6 |
|---|---|
| Cutting width minimum (b1) | 3.8 |
| Cutting diameter (Ds) | 80 |
| Diameter for through hole (d6) | 4.25 |
| Maximum milling depth (tmax) | 20 |
Henter tekniske filer …
Kategorier:SCHLITZFRÄSEN (H_M101...16-30_3)
Henter matchende værktøj…
| Number of revolutions maximum (nmax) | 6000 |
|---|
| Number of teeth (Z) | 6 |
|---|
| Plating seat size (Größe) | 40 |
|---|
| Total width with drive rings (b2) | 15.2 |
|---|
| Wide disc cutter without cutting insert (b) | 3.2 |
|---|
| cutting width min met | 3.8 |
|---|
| milling body wide met | 3.2 |
|---|
| number-of-teeth | 6 |
|---|
