Name: HORN M101.0080.A16.20
SKU: HM1010080A1620

HORN M101.0080.A16.20 · JR Tool

Tekniske specifikationer
Cutting width maximum (Schneidbreite)	2.3
Cutting width minimum (b1)	2
Cutting diameter (Ds)	80
Diameter facing system for disk cutters (d2)	16
Diameter of the mandrel (dK)	37
Length from stop to center insert (l4)	22.7
Maximum milling depth/ depth of groove (w)	20
Miller length with indexable insert (hmax)	33
Mounting hole depth (l1)	18
Neck diameter/ Flange diameter miller mandrel (d4)	32
Number of revolutions maximum (nmax)	6000
Number of teeth (Z)	7
Plating seat size (Größe)	20
Wide disc cutter without cutting insert (b)	1.6
cutting width min met	2
number-of-teeth	7

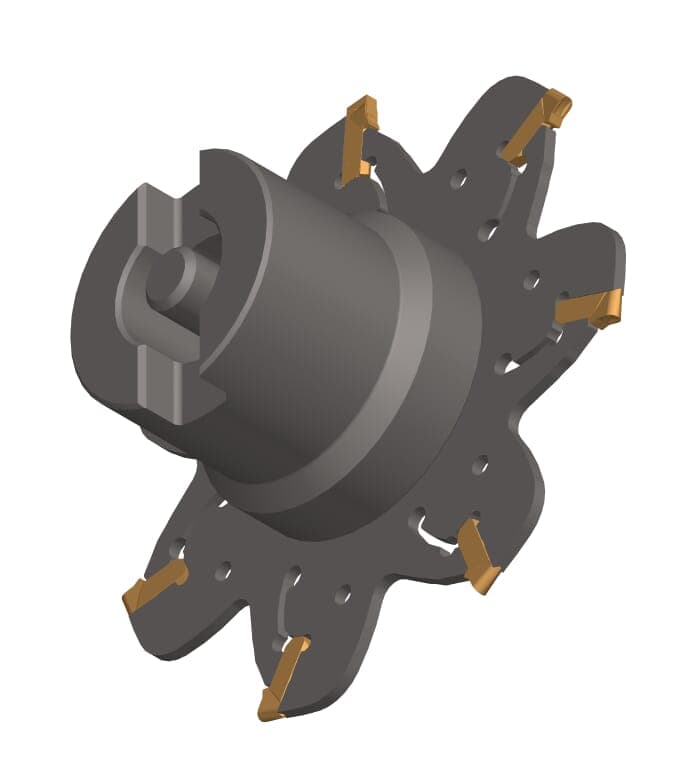

HORN M101.0080.A16.20

Tekniske billeder
