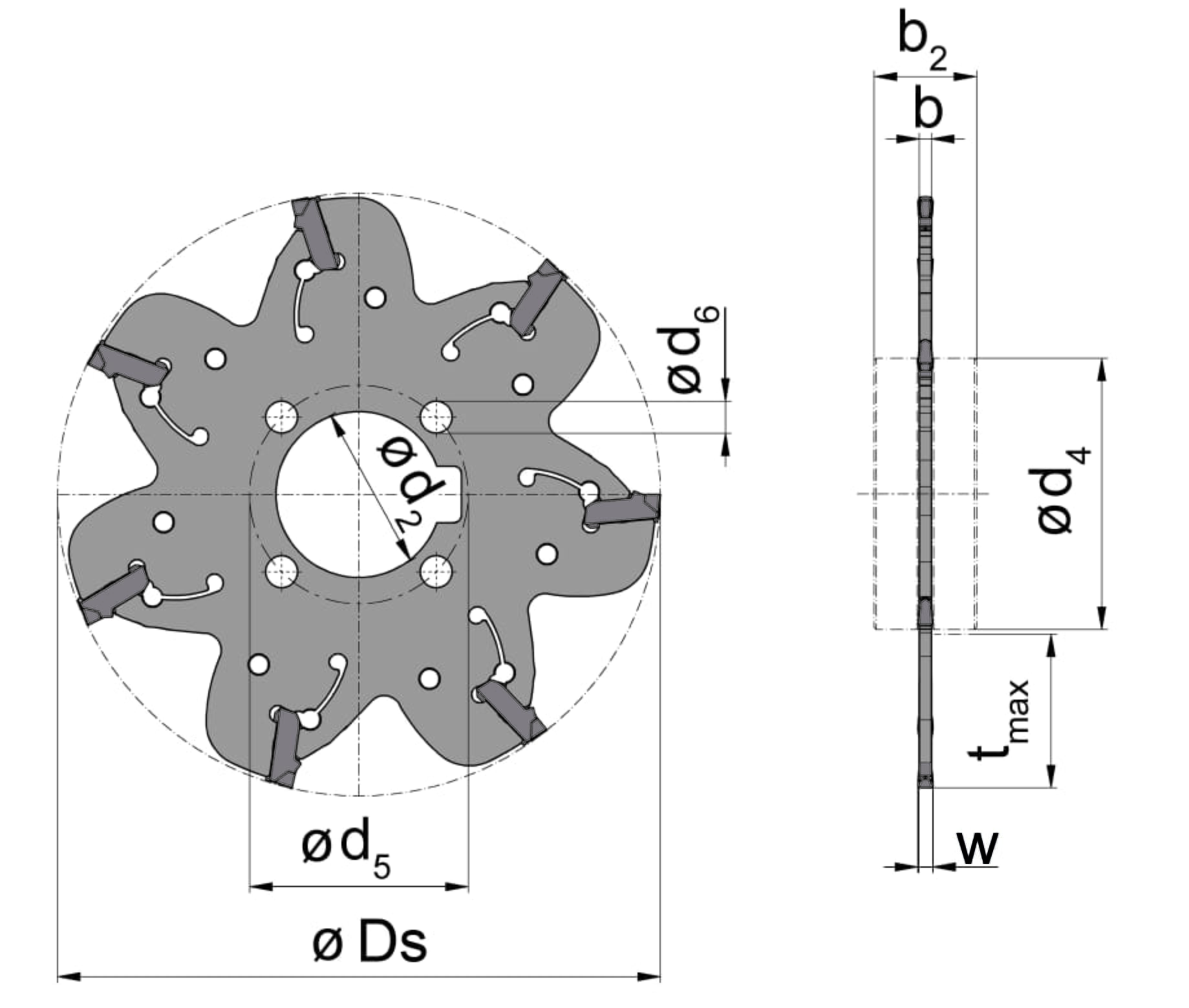

1 / 2: HORN M101.0100.22.16
Parting-off
Slotting| Cutting width maximum (Schneidbreite) | 1.8 |
|---|---|
| Cutting width minimum (b1) | 1.6 |
| Cutting diameter (Ds) | 100 |
| Diameter for through hole (d6) | 4.25 |
| Maximum milling depth (tmax) | 30 |
Henter tekniske filer …
Kategorier:System M101...D...
Henter matchende værktøj…
| Number of revolutions maximum (nmax) | 5000 |
|---|
| Number of teeth (Z) | 9 |
|---|
| Plating seat size (Größe) | 16 |
|---|
| Total width with drive rings (b2) | 13.3 |
|---|
| Wide disc cutter without cutting insert (b) | 1.3 |
|---|
| cutting width min met | 1.6 |
|---|
| milling body wide met | 1.3 |
|---|
| number-of-teeth | 9 |
|---|
