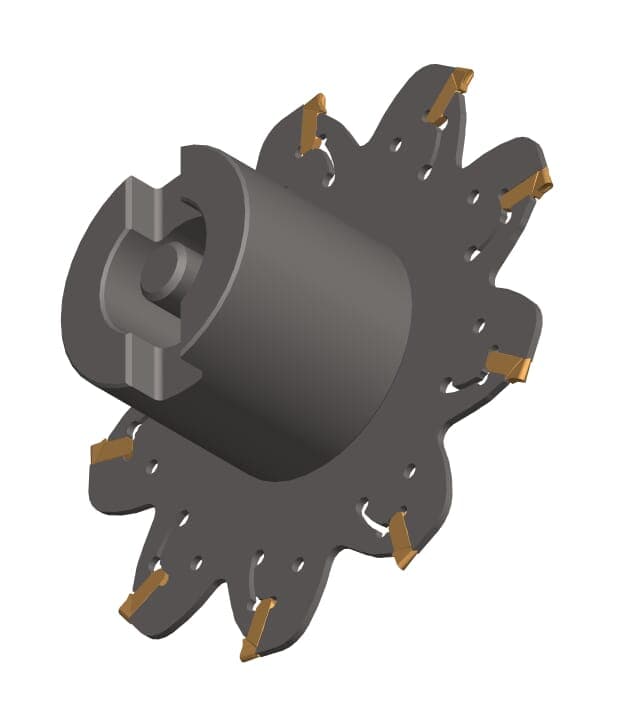

1 / 2: HORN M101.0100.A22.16
Henter tekniske filer …
Kategorier:Milling shanks System M101
Henter matchende værktøj…
Parting-off
Slotting| Cutting width maximum (Schneidbreite) | 1.8 |
|---|---|
| Cutting width minimum (b1) | 1.6 |
| Cutting diameter (Ds) | 100 |
| Diameter facing system for disk cutters (d2) | 22 |
| Diameter of the mandrel (dK) | 40.5 |
| Length from stop to center insert (l4) | 24.7 |
| Maximum milling depth/ depth of groove (w) | 28 |
| Miller length with indexable insert (hmax) | 37 |
| Mounting hole depth (l1) | 20 |
| Neck diameter/ Flange diameter miller mandrel (d4) | 40.5 |
| Number of revolutions maximum (nmax) | 5000 |
| Number of teeth (Z) | 9 |
| Plating seat size (Größe) | 16 |
| Wide disc cutter without cutting insert (b) | 1.3 |
| cutting width min met | 1.6 |
| number-of-teeth | 9 |
