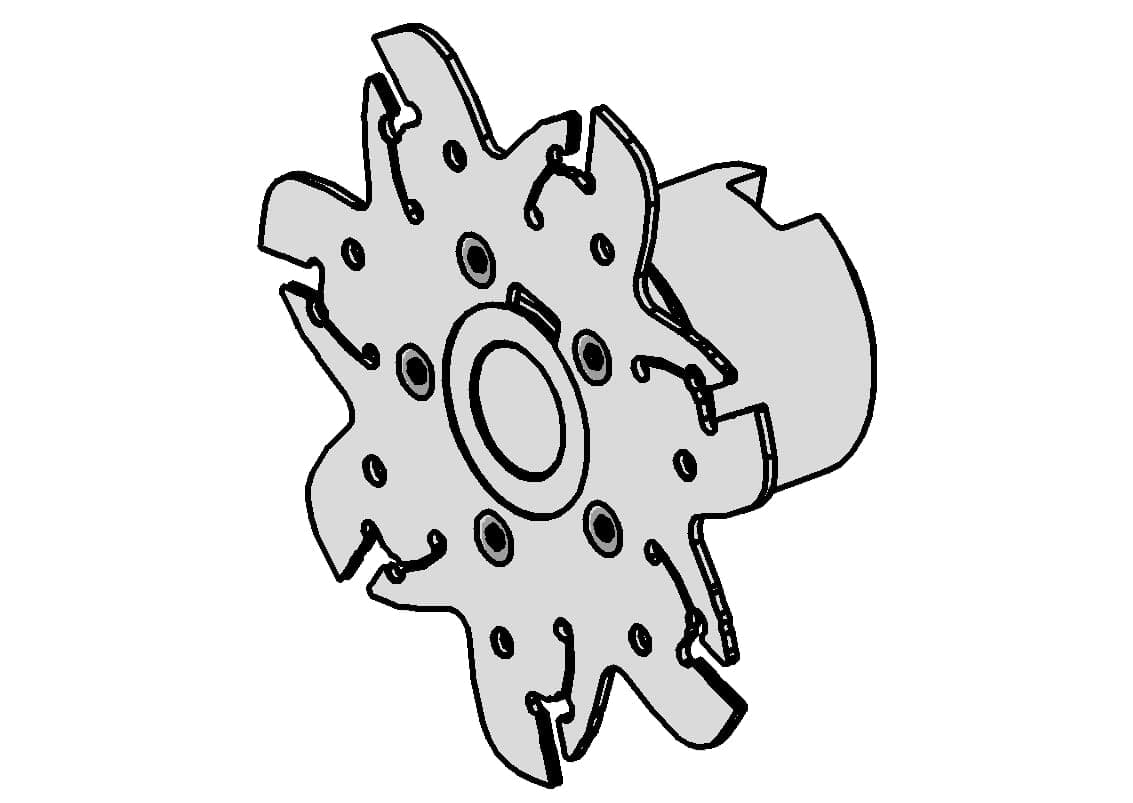

HORN M101.0100.A22.20

Name: HORN M101.0100.A22.20
SKU: HM1010100A2220

Tekniske billeder

Henter tekniske filer …

Henter matchende værktøj…

Cutting width maximum (Schneidbreite)	2.3
Cutting width minimum (b1)	2
Cutting diameter (Ds)	100
Diameter facing system for disk cutters (d2)	22
Diameter of the mandrel (dK)	40.5
Length from stop to center insert (l4)	24.7
Maximum milling depth/ depth of groove (w)	28
Miller length with indexable insert (hmax)	37
Mounting hole depth (l1)	20
Neck diameter/ Flange diameter miller mandrel (d4)	40.5
Number of revolutions maximum (nmax)	5000
Number of teeth (Z)	9
Plating seat size (Größe)	20
Wide disc cutter without cutting insert (b)	1.6
cutting width min met	2
number-of-teeth	9
