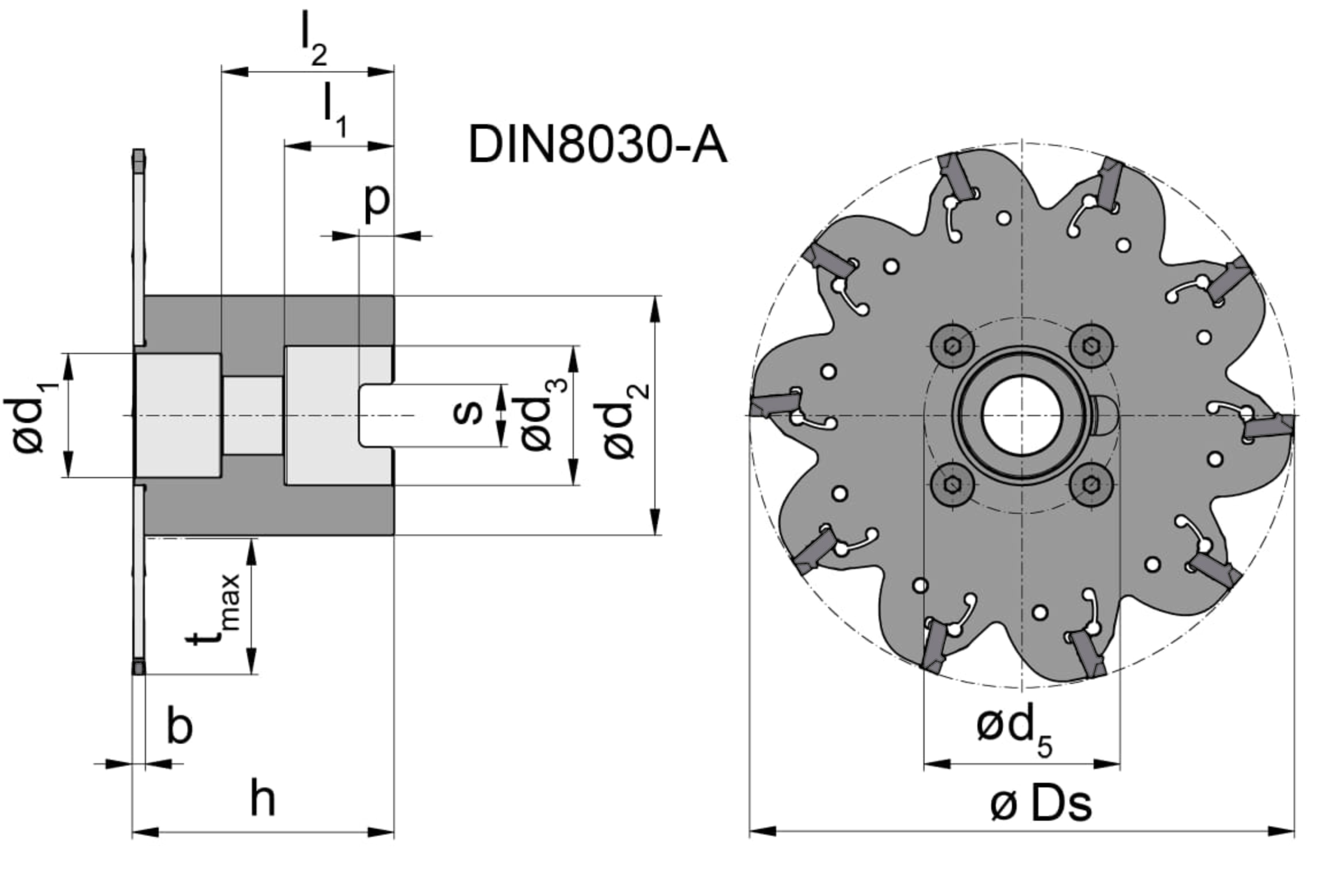

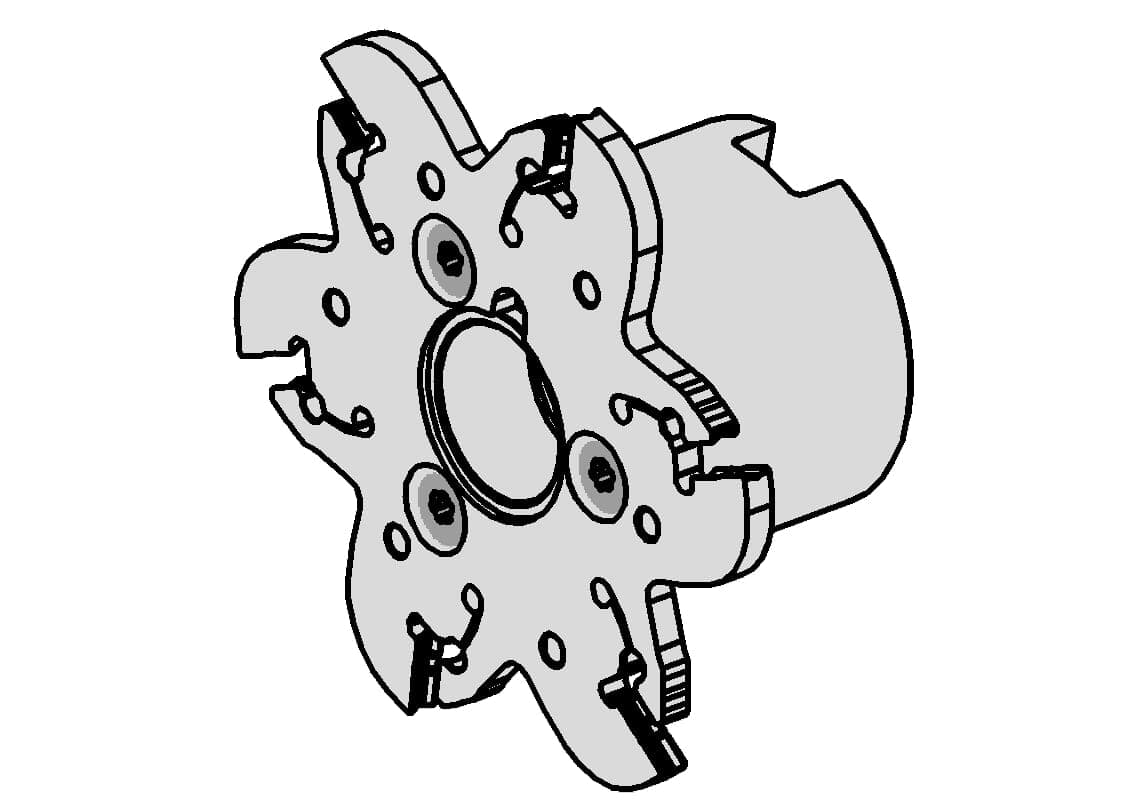

SCHLITZFRÄSEN (H_M101...A..._3)
Slotting| Cutting width maximum (Schneidbreite) | 3.4 |
|---|---|
| Cutting width minimum (b1) | 2.8 |
| Cutting diameter (Ds) | 100 |
| Diameter facing system for disk cutters (d2) | 22 |
| Diameter of the mandrel (dK) | 40 |
| Length from stop to center insert (l4) | 24.7 |
| Maximum milling depth/ depth of groove (w) | 29 |
Henter tekniske filer …
Kategorier:SCHLITZFRÄSEN (H_M101...A..._3)
Henter matchende værktøj…
| Miller length with indexable insert (hmax) | 37 |
|---|
| Mounting hole depth (l1) | 20 |
|---|
| Number of revolutions maximum (nmax) | 5000 |
|---|
| Number of teeth (Z) | 8 |
|---|
| Plating seat size (Größe) | 30 |
|---|
| Wide disc cutter without cutting insert (b) | 2.4 |
|---|
| cutting width min met | 2.8 |
|---|
| number-of-teeth | 8 |
|---|
