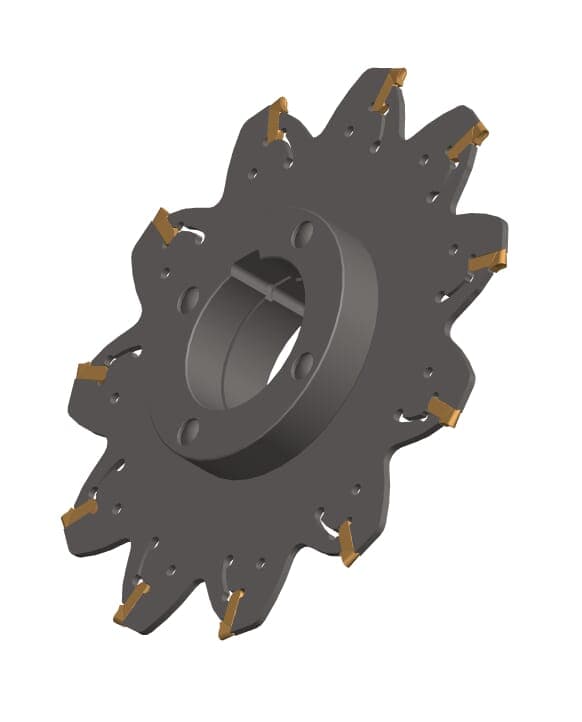

1 / 2: HORN M101.0125.32.20
Parting-off
Slotting| Cutting width maximum (Schneidbreite) | 2.3 |
|---|---|
| Cutting width minimum (b1) | 2 |
| Cutting diameter (Ds) | 125 |
| Diameter for through hole (d6) | 6.25 |
| Maximum milling depth (tmax) | 33 |
Henter tekniske filer …
Kategorier:System M101...D...
Henter matchende værktøj…
| Number of revolutions maximum (nmax) | 4000 |
|---|
| Number of teeth (Z) | 11 |
|---|
| Plating seat size (Größe) | 20 |
|---|
| Total width with drive rings (b2) | 21.6 |
|---|
| Wide disc cutter without cutting insert (b) | 1.6 |
|---|
| cutting width min met | 2 |
|---|
| milling body wide met | 1.6 |
|---|
| number-of-teeth | 11 |
|---|
