SCHLITZFRÄSEN (H_M101...16-30_3)

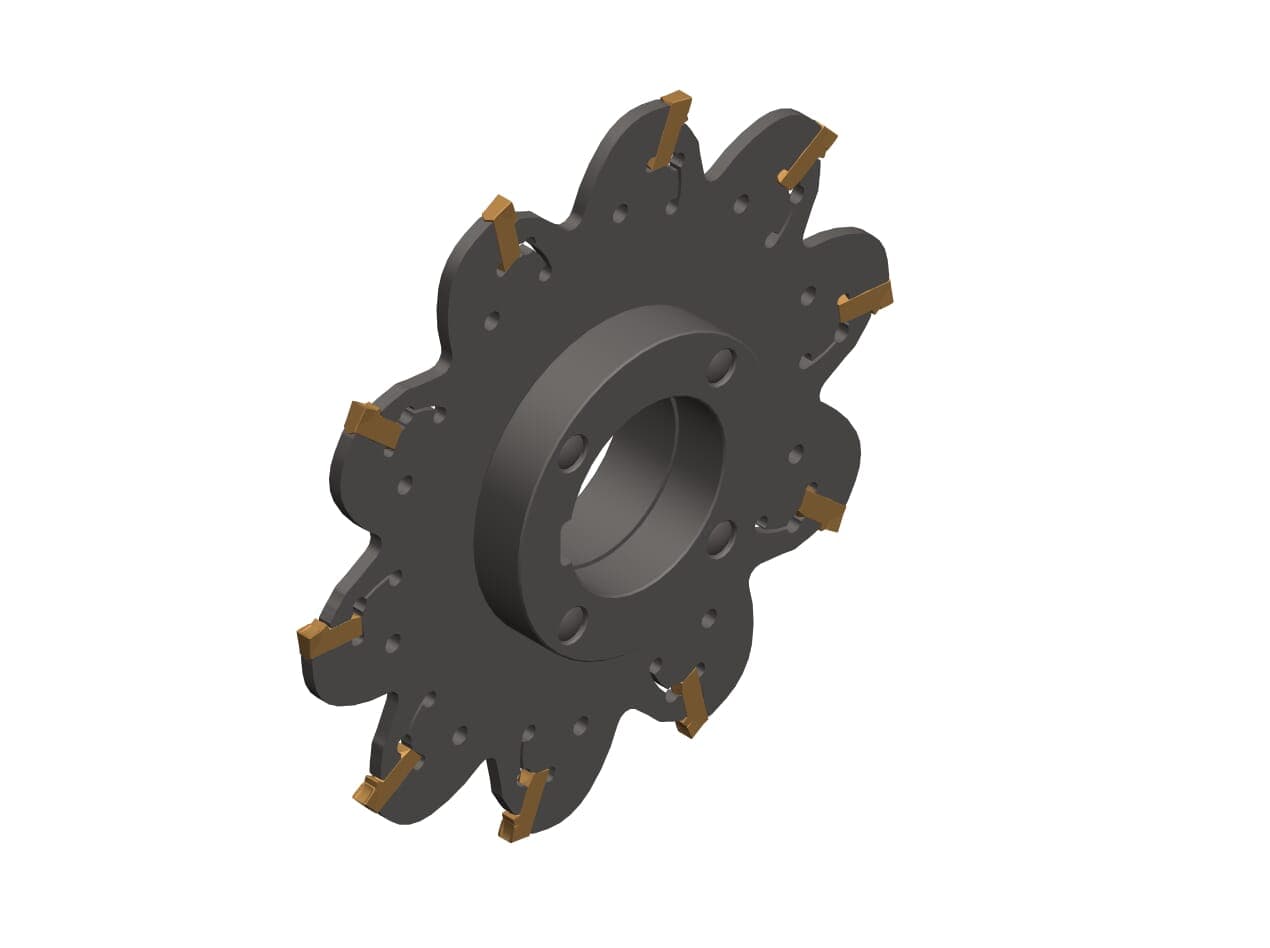

1 / 2: HORN M101.0125.32.30
Parting-off
Slotting| Cutting width maximum (Schneidbreite) | 3.4 |
|---|---|
| Cutting width minimum (b1) | 2.8 |
| Cutting diameter (Ds) | 125 |
| Diameter for through hole (d6) | 6.25 |
| Maximum milling depth (tmax) | 34 |
Henter tekniske filer …
Kategorier:SCHLITZFRÄSEN (H_M101...16-30_3)
Henter matchende værktøj…
| Number of revolutions maximum (nmax) | 4000 |
|---|
| Number of teeth (Z) | 10 |
|---|
| Plating seat size (Größe) | 30 |
|---|
| Total width with drive rings (b2) | 22.4 |
|---|
| Wide disc cutter without cutting insert (b) | 2.4 |
|---|
| cutting width min met | 2.8 |
|---|
| milling body wide met | 2.4 |
|---|
| number-of-teeth | 10 |
|---|
