Parting-off
Slotting
Internal cooling
Shank form DIN6535-HAHenter tekniske filer …

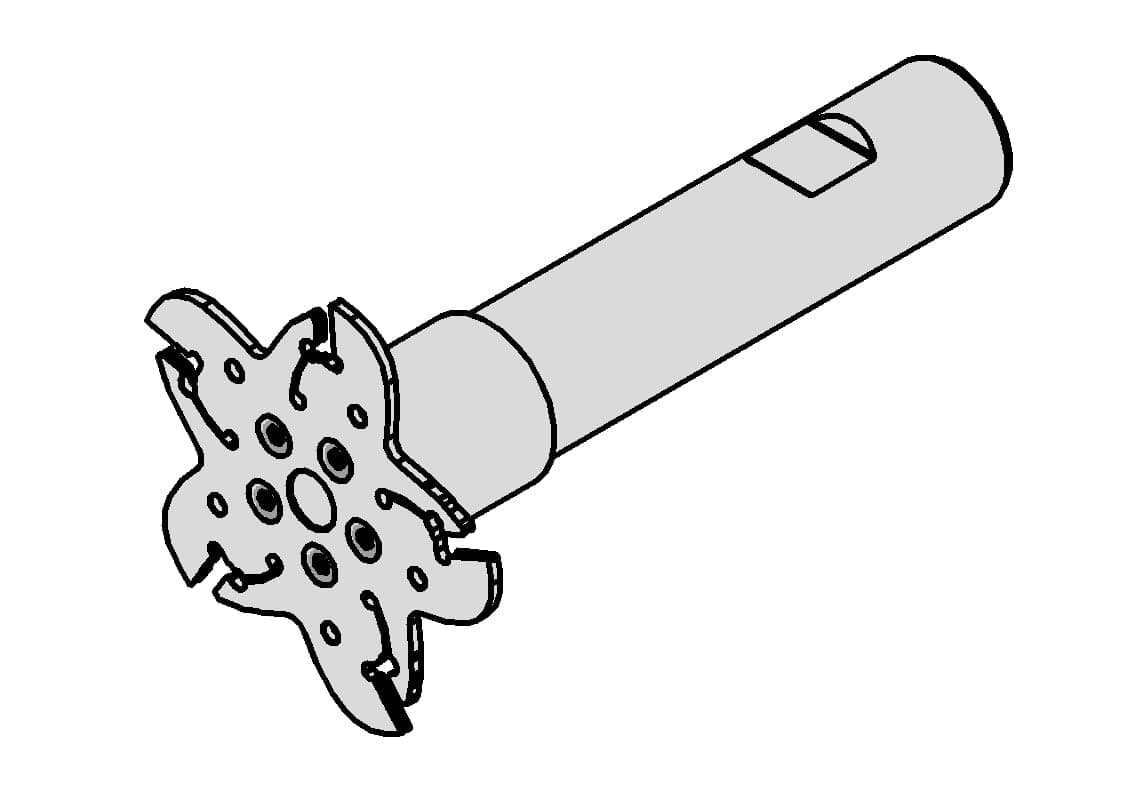

Kategorier:System M101...D...
Henter matchende værktøj…
| Cutting width maximum (Schneidbreite) | 1.2 |
|---|---|
| Cutting width minimum (b1) | 1.2 |
| Cutting diameter (Ds) | 63 |
| Form _Form_ | A |
| Maximum milling depth (tmax) | 19.5 |
| Neck diameter (d1) | 23 |
| Number of revolutions maximum (nmax) | 7500 |
| Number of teeth (Z) | 5 |
| Plating seat size (Größe) | 12 |
| Shank diameter (d) | 16 |
| Total length (l) | 110 |
| Total length insert (l1) | 110 |
| Wide disc cutter without cutting insert (b) | 0.95 |
| Working length, Neck length, Extension length (l3) | 30 |
| cutting width min met | 1.2 |
| number-of-teeth | 5 |
