NUTFRÄSEN (Zirkular) (H_M275...B_3)

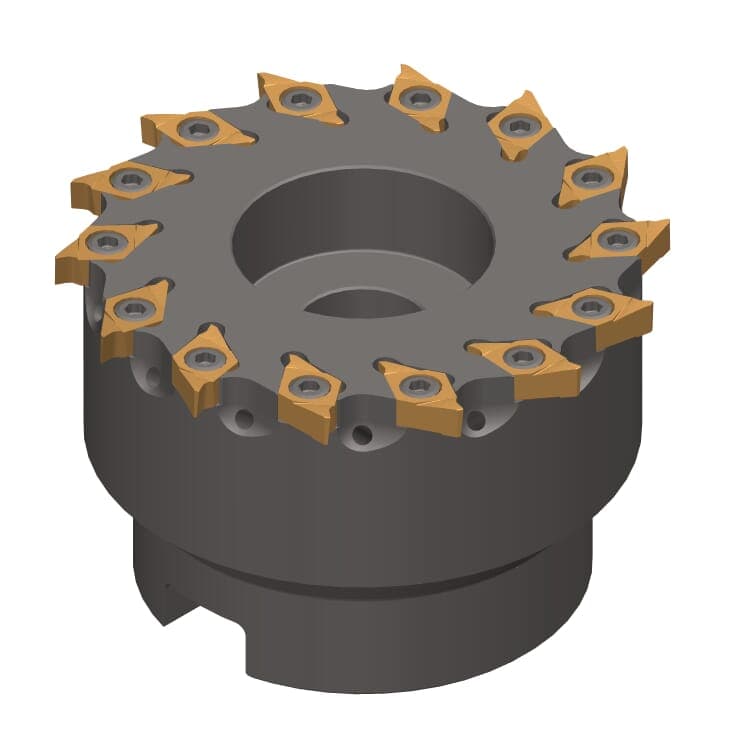

1 / 2: HORN M275.0078.A32.14
Henter tekniske filer …
Kategorier:NUTFRÄSEN (Zirkular) (H_M275...B_3)
Henter matchende værktøj…
Slotting
Internal groove
Internal thread milling
Internal cooling| Cutting diameter (Ds) | 78 |
|---|---|
| Depth carrier cross groove (P) | 8 |
| Diameter of the mandrel (dK) | 70.5 |
| Length from stop to center insert (l4) | 36.7 |
| Lowering for mounting screw head (d1) | 33 |
| Miller length with indexable insert (hmax) | 50 |
| Miller length without indexable insert (hmin) | 49.7 |
| Mounting hole depth (l1) | 25 |
| Mounting hole diameter (d2) | 32 |
| Neck diameter/ Flange diameter miller mandrel (d4) | 58 |
| Number of teeth (Z) | 14 |
| Width carrier cross groove (s) | 14.4 |
| number-of-teeth | 14 |
