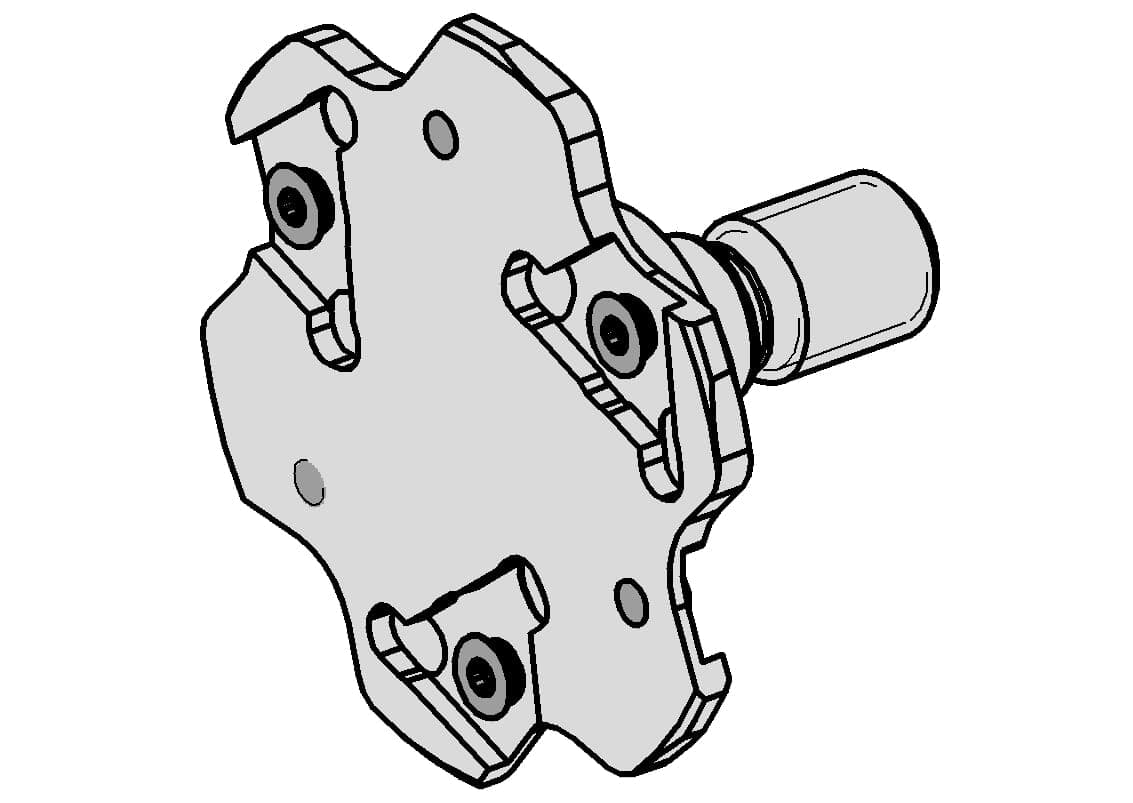

Screw-in milling cutter System M310
Slotting| Cutting diameter (Ds) | 63 |
|---|---|
| Key range (SW) | 17 |
| Left hand indexable insert (linke WSP) | 3x LS310.5028... |
| Length from stop (l2) | 17 |
| Maximum milling depth (tmax) | 20 |
| Neck diameter on stop (d4) | 21 |
| Number of teeth (Z) | 6 |
| Right hand indexable insert (rechte WSP) |
Henter tekniske filer …
Kategorier:Screw-in milling cutter System M310
Henter matchende værktøj…
| 3x RS310.5028... |
| Screw thread (d2) | M12 |
|---|
| Width of groove (w) | 5 |
|---|
| number-of-teeth | 6 |
|---|
