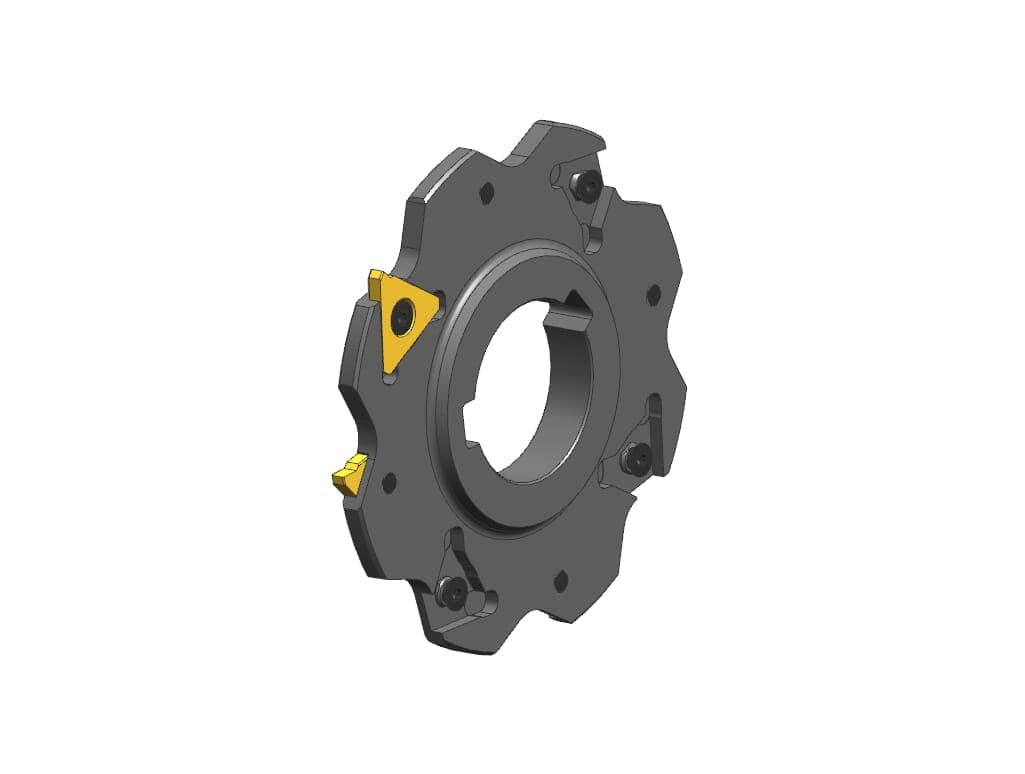

1 / 2: HORN M310.0080.27.03
Full radius slot
Parting-off
Slotting
Internal grooveHenter tekniske filer …
Henter matchende værktøj…
| Bore diameter miller body (d3) | 40 |
|---|
| Cutting width maximum (w) | 3 |
|---|
| Cutting diameter (Ds) | 80 |
|---|
| Left hand indexable insert (linke WSP) | 4x LS310.3017... |
|---|
| Maximum milling depth (tmax) | 18 |
|---|
| Number of teeth (Z) | 8 |
|---|
| Right hand indexable insert (rechte WSP) | 4x RS310.3017... |
|---|
| Total width with drive rings (b2) | 8 |
|---|
| cutting width max met | 3 |
|---|
| number-of-teeth | 8 |
|---|
