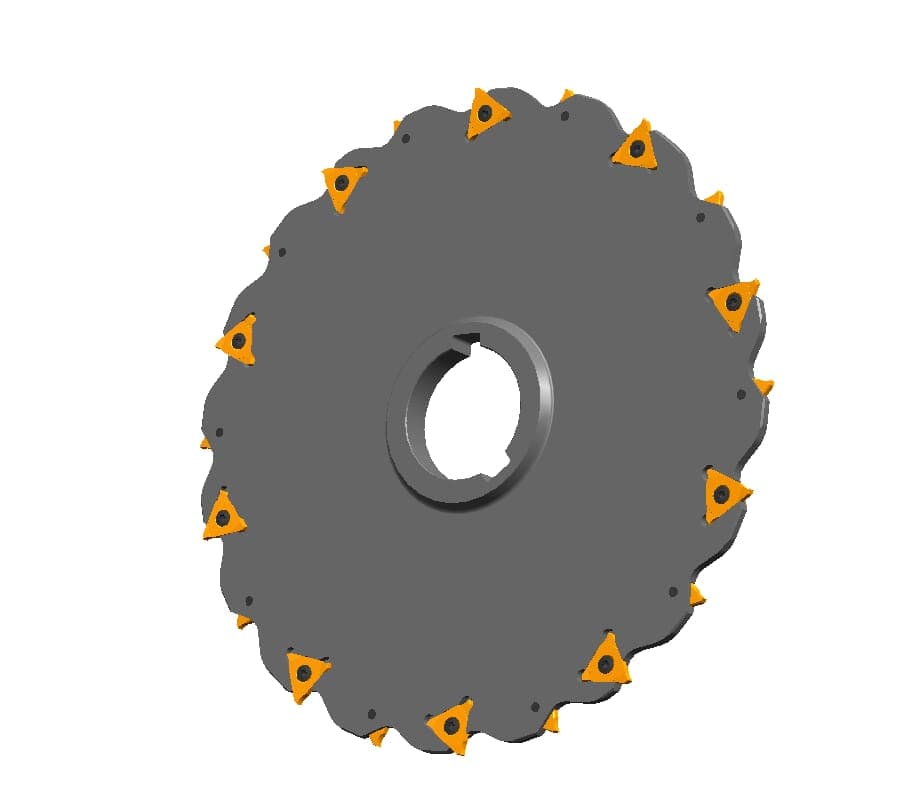

1 / 2: HORN M310.0200.40.04
Full radius slot
Parting-off
Slotting
Internal grooveHenter tekniske filer …
Kategorier:TRENNFRÄSEN (C_H_M310...3_3)
Henter matchende værktøj…
| Bore diameter miller body (d3) | 54 |
|---|
| Cutting width maximum (w) | 4 |
|---|
| Cutting diameter (Ds) | 200 |
|---|
| Left hand indexable insert (linke WSP) | 10x LS310.4023... |
|---|
| Maximum milling depth (tmax) | 70 |
|---|
| Number of teeth (Z) | 20 |
|---|
| Right hand indexable insert (rechte WSP) | 10x RS310.4023... |
|---|
| Total width with drive rings (b2) | 10 |
|---|
| cutting width max met | 4 |
|---|
| number-of-teeth | 20 |
|---|
