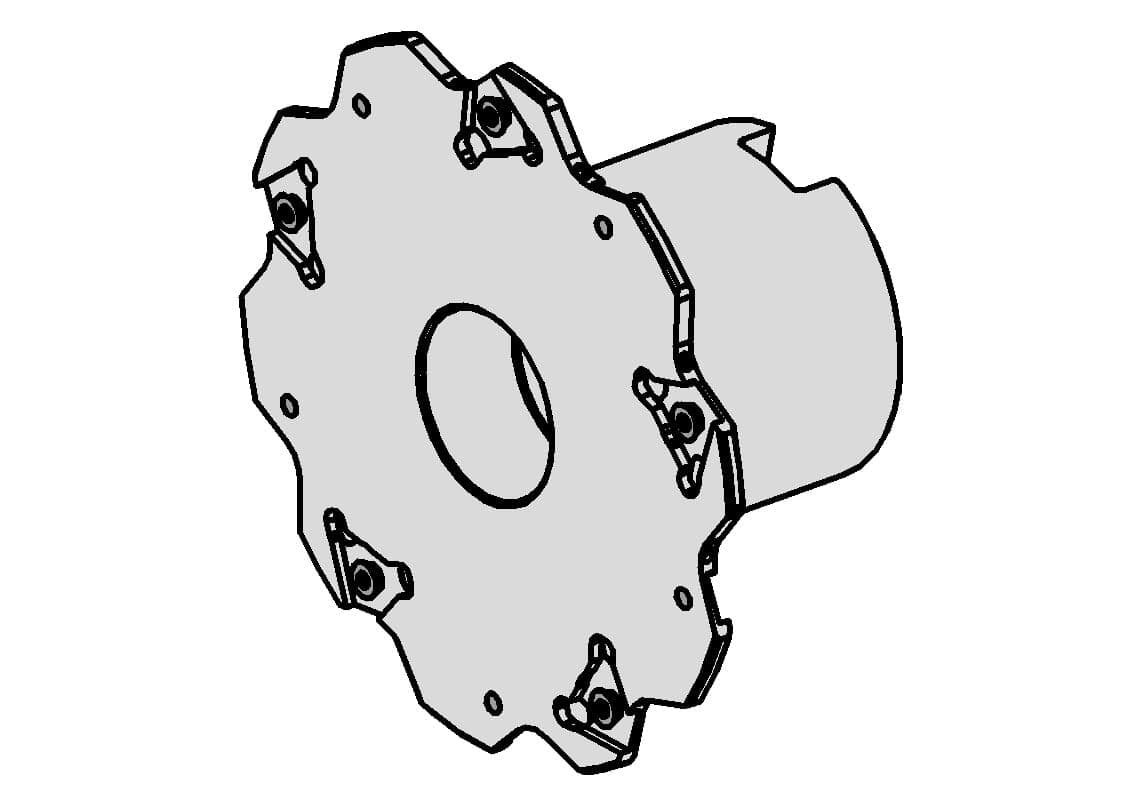

1 / 2: HORN M310.1100.27.03.IK
Full radius slot
Parting-off
Slotting
Internal groove
Henter tekniske filer …
Kategorier:System M310 IK
Henter matchende værktøj…
| Cutting width maximum (w) | 3 |
|---|---|
| Cutting diameter (Ds) | 100 |
| Diameter facing system for disk cutters (d2) | 27 |
| Diameter of the mandrel (dK) | 48 |
| Left hand indexable insert (linke WSP) | 5x LS310.3017... |
| Maximum milling depth/ depth of groove (w) | 25 |
| Miller length with indexable insert (hmax) | 50 |
| Number of teeth (Z) | 10 |
| Right hand indexable insert (rechte WSP) | 5x RS310.3017... |
| cutting width max met | 3 |
| number-of-teeth | 10 |
