TRENNFRÄSEN (C_H_M310..3 Auf_3(alt))

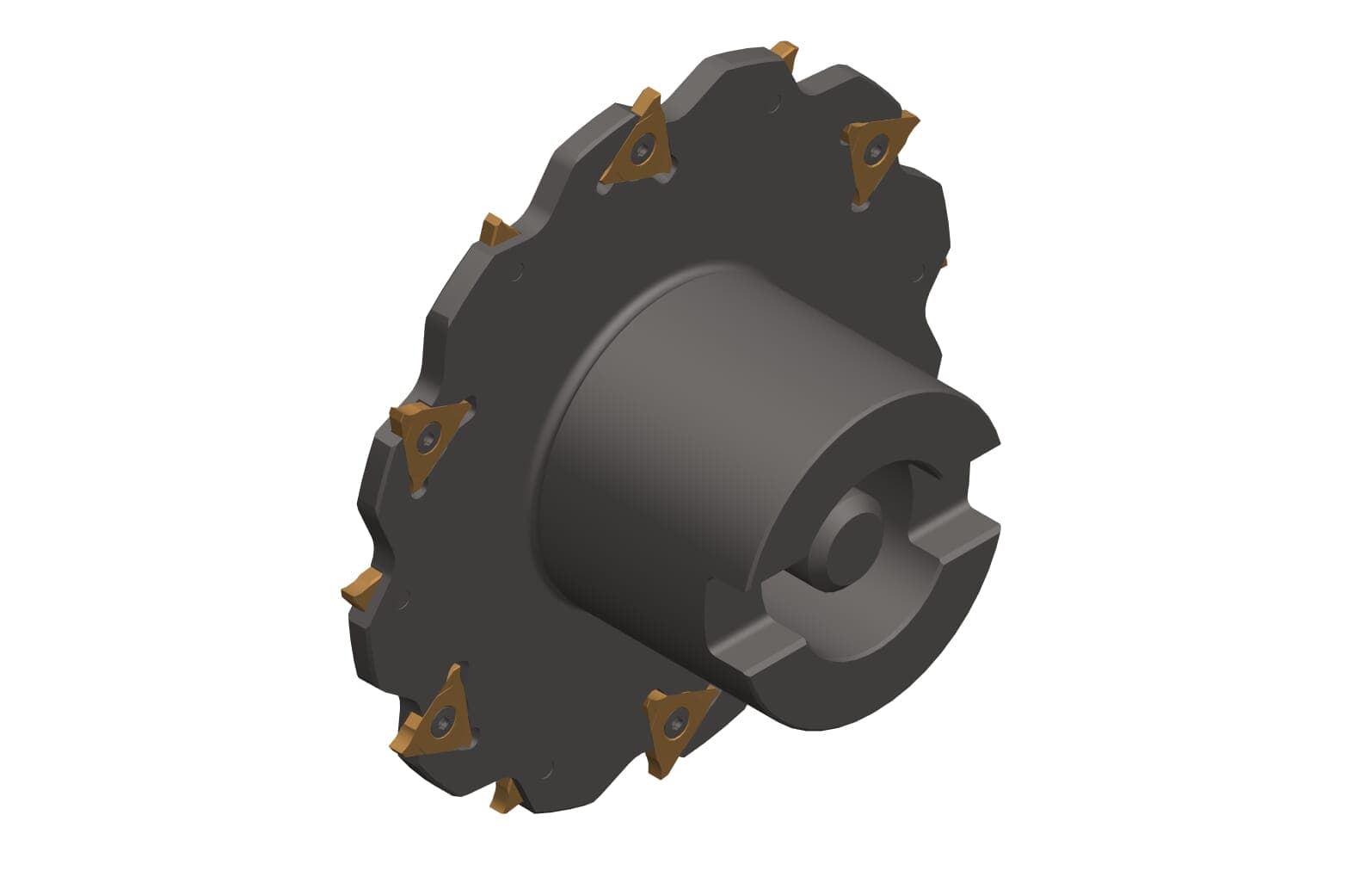

1 / 2: HORN M310.1125.32.05
Full radius slot
Parting-off
Slotting
Internal grooveHenter tekniske filer …
Kategorier:TRENNFRÄSEN (C_H_M310..3 Auf_3(alt))
Henter matchende værktøj…
| Cutting width maximum (w) | 5 |
|---|
| Cutting diameter (Ds) | 125 |
|---|
| Diameter facing system for disk cutters (d2) | 32 |
|---|
| Diameter of the mandrel (dK) | 56 |
|---|
| Left hand indexable insert (linke WSP) | 6x LS310.5028... |
|---|
| Maximum milling depth/ depth of groove (w) | 32.5 |
|---|
| Miller length with indexable insert (hmax) | 50 |
|---|
| Number of teeth (Z) | 12 |
|---|
| Right hand indexable insert (rechte WSP) | 6x RS310.5028... |
|---|
| cutting width max met | 5 |
|---|
| number-of-teeth | 12 |
|---|
