Corner cutting
Internal cooling

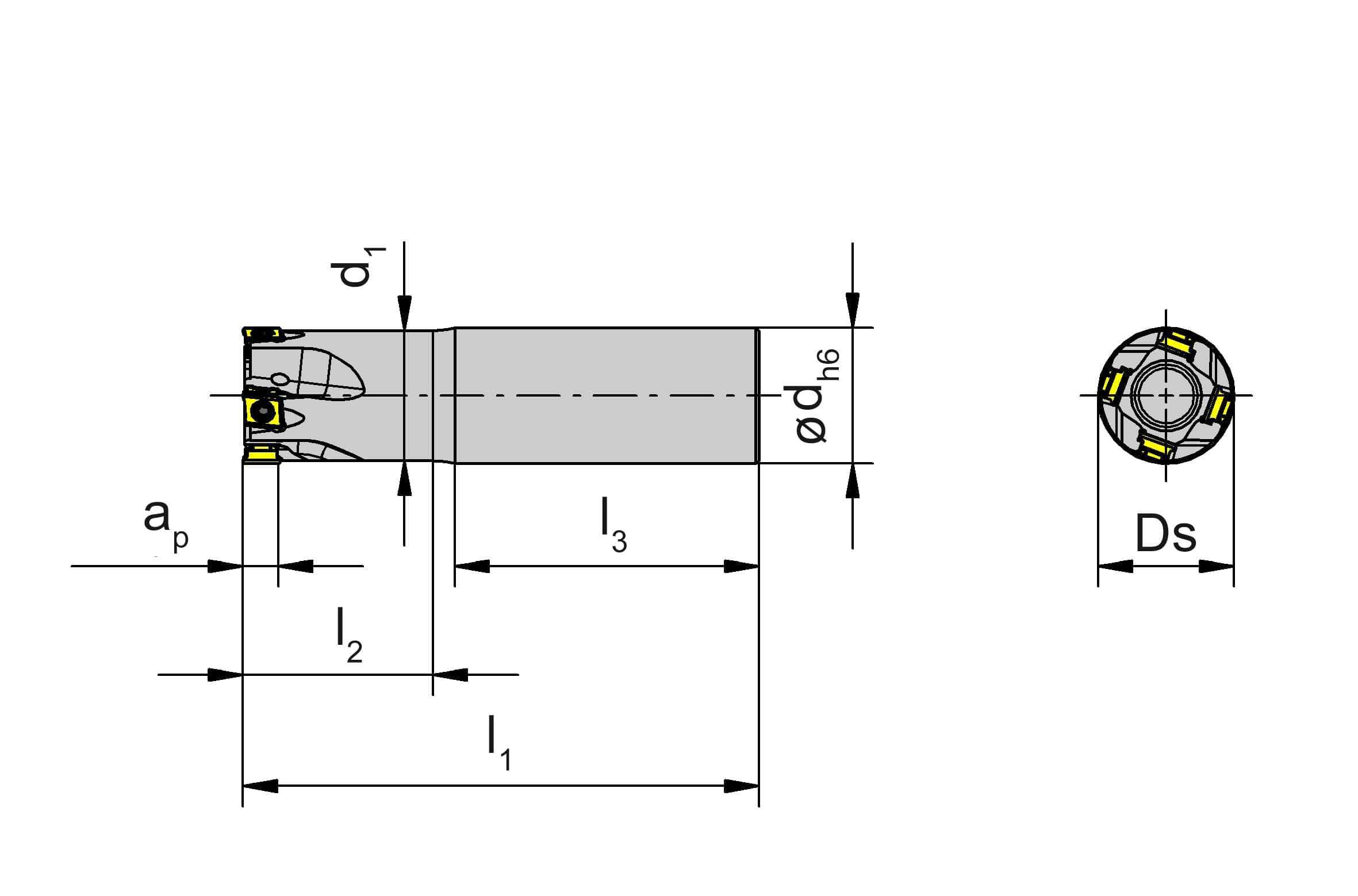

Shank DIN1835-A| Cone diameter (d) | 16 |
|---|---|
| Cutting depth (ap) | 6.3 |
Henter tekniske filer …
Kategorier:Milling shanks system M406
Henter matchende værktøj…
| Cutting diameter (Ds) | 16 |
|---|
| Neck diameter (d1) | 15 |
|---|
| Number of revolutions maximum (nmax) | 23700 |
|---|
| Number of teeth (Z) | 2 |
|---|
| Shank diameter (d) | 16 |
|---|
| Tension length (l3) | 48 |
|---|
| Total length (l) | 75 |
|---|
| Total length insert (l1) | 75 |
|---|
| Working length, Neck length, Extension length (l3) | 25 |
|---|
| number-of-teeth | 2 |
|---|
