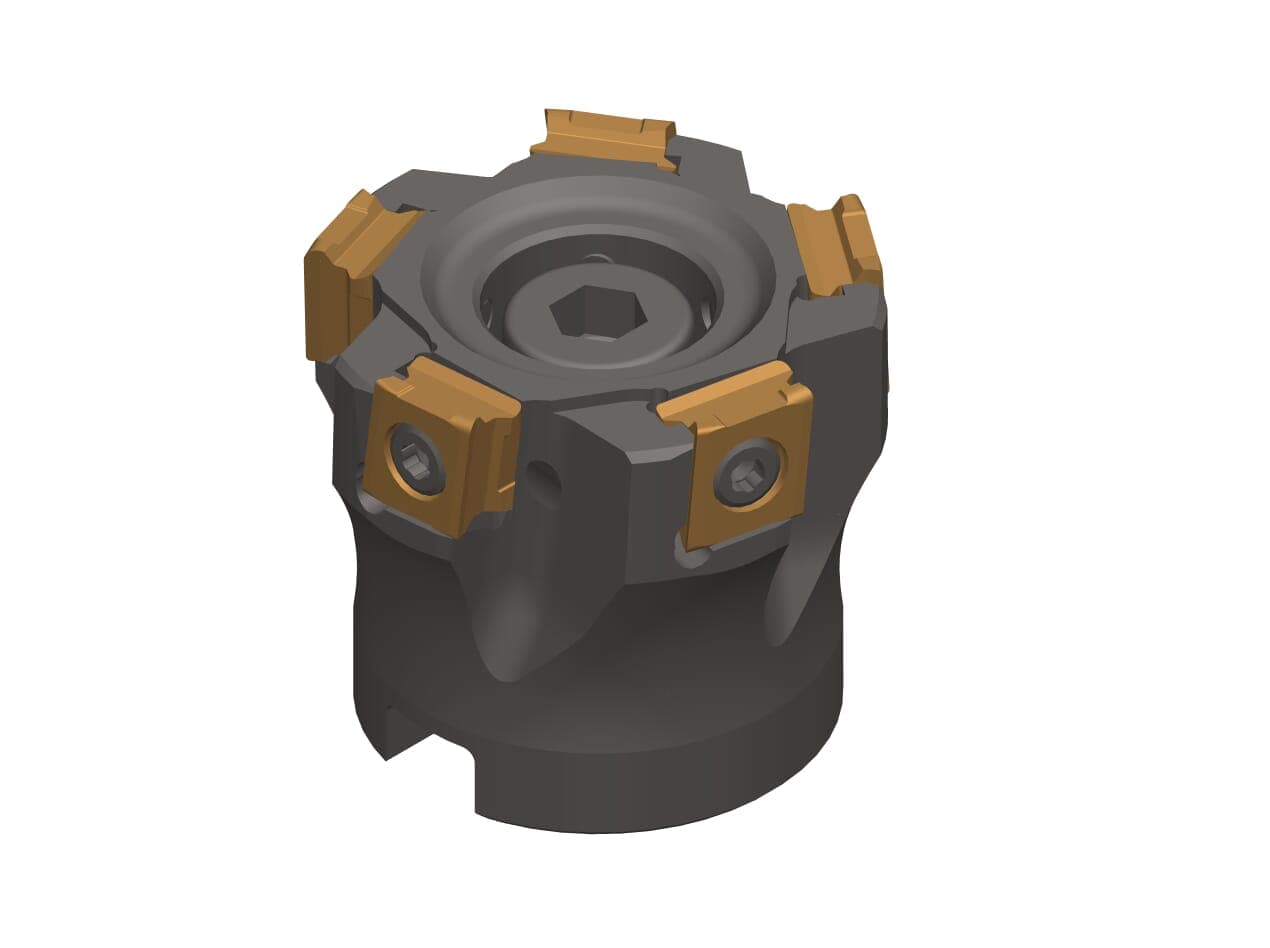

1 / 2: HORN M409.0040.A16.05
Corner cutting
Face milling
Internal cooling| Cutting diameter (Ds) | 40 |
|---|---|
| Depth carrier cross groove (P) | 5.6 |
Henter tekniske filer …
Kategorier:TANGENTIALFRÄSEN (H_M409A_3)
Henter matchende værktøj…
| Diameter miller body (d4) |
|---|
| 39 |
| Length from stop to center insert (l4) | 22 |
|---|
| Lowering for mounting screw head (d1) | 16 |
|---|
| Maximum stepover (ap) (ap) | 9.3 |
|---|
| Miller length with indexable insert (hmax) | 35 |
|---|
| Miller length without indexable insert (hmin) | 34.5 |
|---|
| Number of revolutions maximum (nmax) | 13900 |
|---|
| Number of teeth (Z) | 5 |
|---|
| Width carrier cross groove (s) | 8.4 |
|---|
| number-of-teeth | 5 |
|---|
