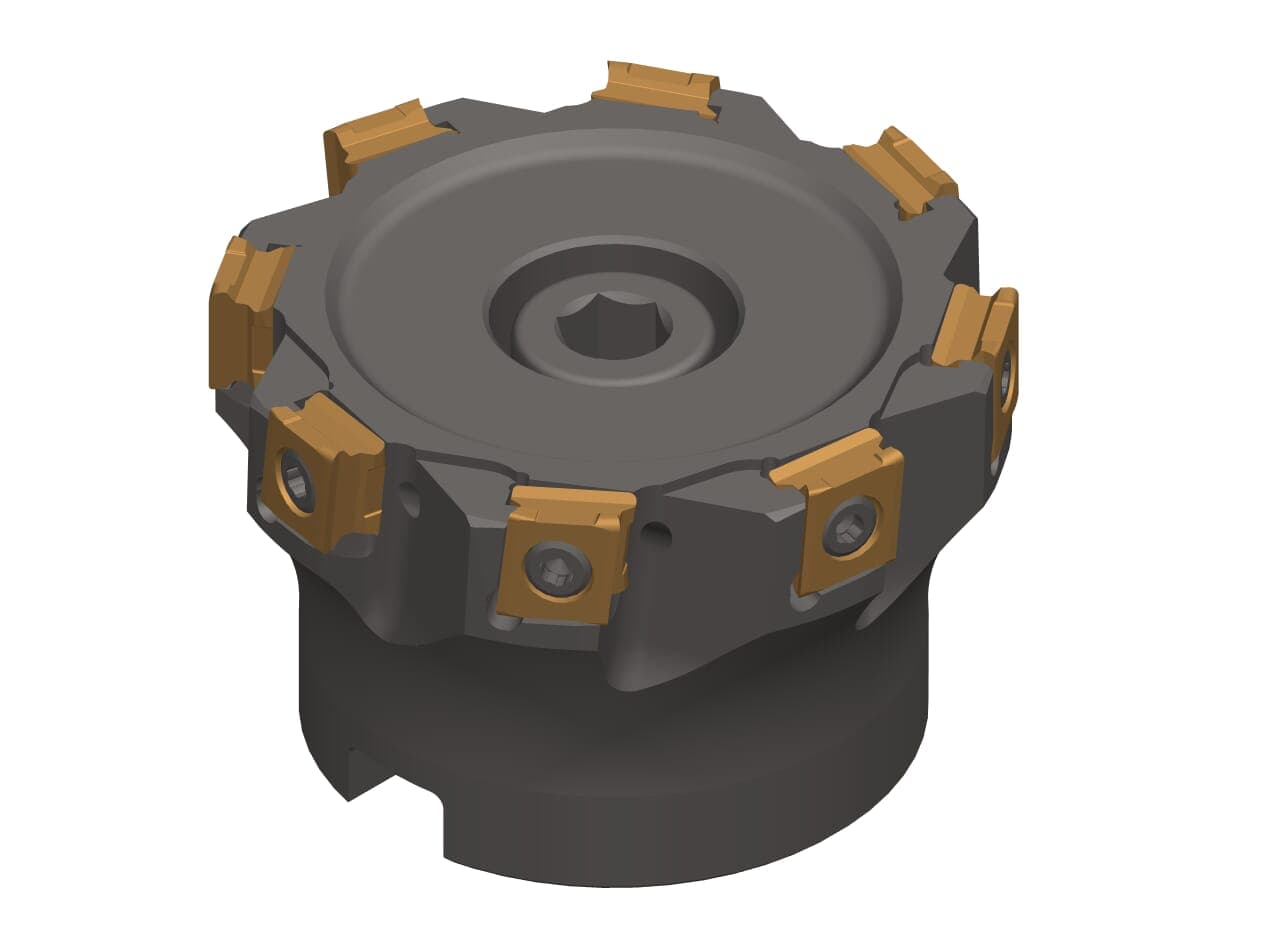

1 / 2: HORN M409.0063.A22.08
Setting angle 90°| Cutting diameter (Ds) | 63 |
|---|---|
| Depth carrier cross groove (P) | 6.3 |
| Diameter miller body (d4) | 62 |
| Length from stop to center insert (l4) | 25 |
| Lowering for mounting screw head (d1) | 19.5 |
| Maximum stepover (ap) (ap) | 9.3 |
| Miller length with indexable insert (hmax) | 40 |
Henter tekniske filer …
Kategorier:TANGENTIALFRÄSEN (H_M409A_3)
Henter matchende værktøj…
| Miller length without indexable insert (hmin) | 39.5 |
|---|
| Number of revolutions maximum (nmax) | 11100 |
|---|
| Number of teeth (Z) | 8 |
|---|
| Width carrier cross groove (s) | 10.4 |
|---|
| number-of-teeth | 8 |
|---|
