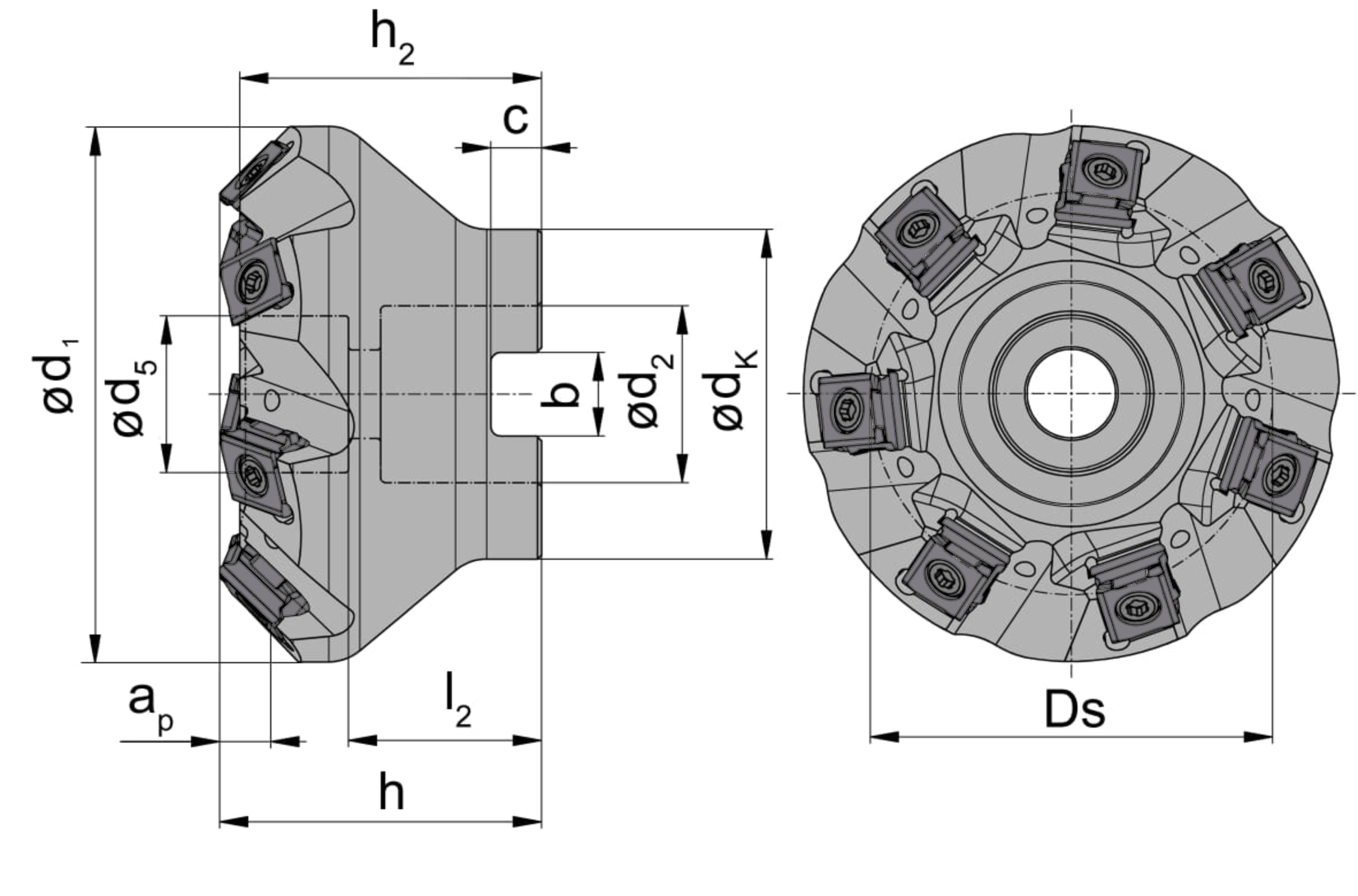

Face milling cutter M409, wide pitch, 45°
Face milling
Internal cooling
Pitch 45°| Cutting diameter (Ds) | 63 |
|---|---|
| Depth carrier cross groove (P) | 6.3 |
Henter tekniske filer …
Kategorier:Face milling cutter M409, wide pitch, 45°
Henter matchende værktøj…
| Diameter miller body (d4) | 80 |
|---|
| Length from stop to center insert (l4) | 25 |
|---|
| Lowering for mounting screw head (d1) | 19.5 |
|---|
| Maximum stepover (ap) (ap) | 6.2 |
|---|
| Miller length with indexable insert (hmax) | 40 |
|---|
| Miller length without indexable insert (hmin) | 37.5 |
|---|
| Number of revolutions maximum (nmax) | 11100 |
|---|
| Number of teeth (Z) | 8 |
|---|
| Width carrier cross groove (s) | 10.4 |
|---|
| number-of-teeth | 8 |
|---|
