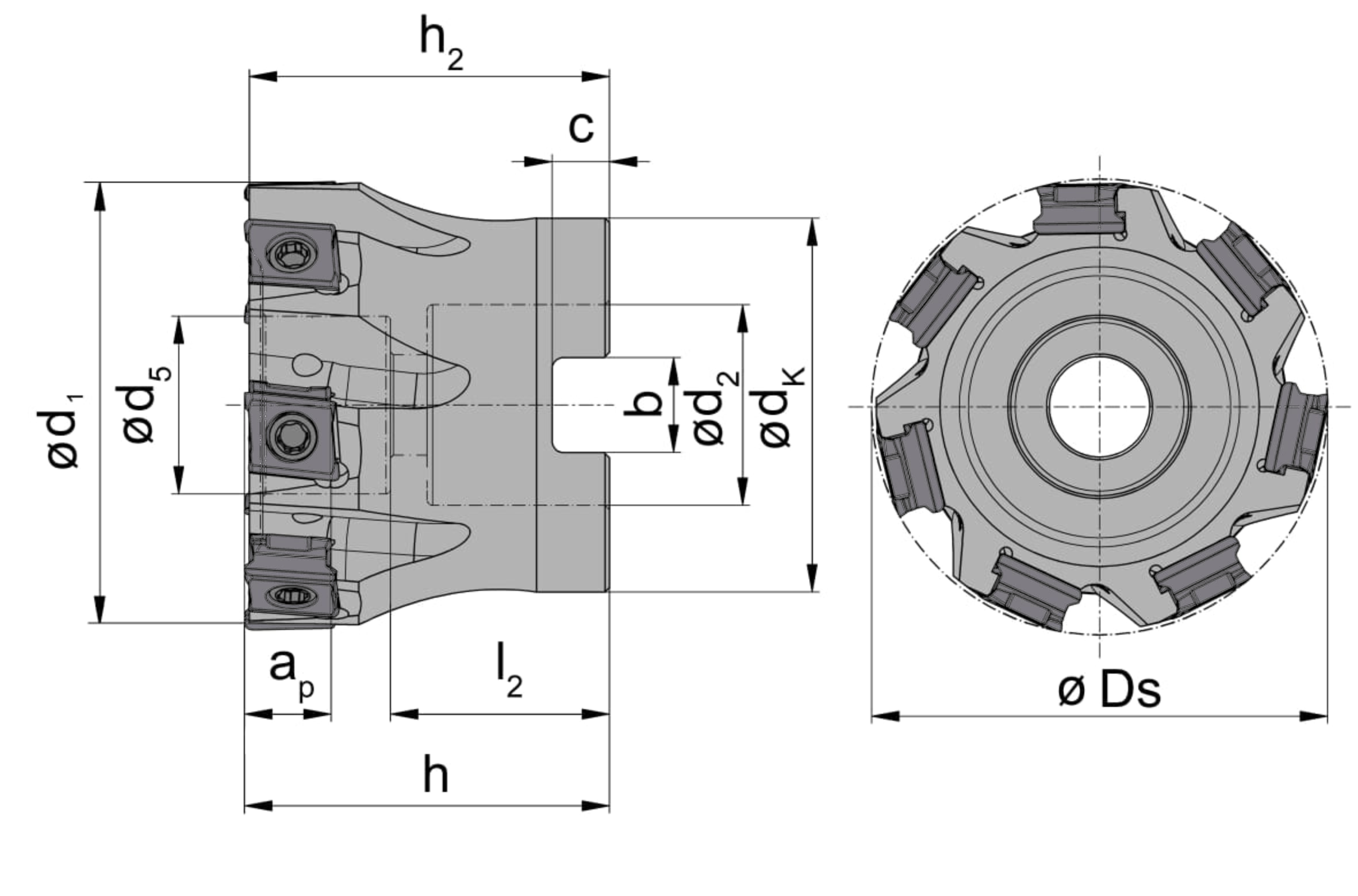

1 / 2: HORN M409.0080.A27.10
Setting angle 90°| Cutting diameter (Ds) | 80 |
|---|---|
| Depth carrier cross groove (P) | 7 |
| Diameter miller body (d4) | 79 |
| Length from stop to center insert (l4) | 28 |
| Lowering for mounting screw head (d1) | 21.5 |
| Maximum stepover (ap) (ap) | 9.3 |
| Miller length with indexable insert (hmax) | 50 |
Henter tekniske filer …
Kategorier:TANGENTIALFRÄSEN (H_M409A_3)
Henter matchende værktøj…
| Miller length without indexable insert (hmin) | 49.5 |
|---|
| Number of revolutions maximum (nmax) | 9800 |
|---|
| Number of teeth (Z) | 10 |
|---|
| Width carrier cross groove (s) | 12.4 |
|---|
| number-of-teeth | 10 |
|---|
