Milling shank system M409 Tangential milling
T-slot milling
Internal cooling

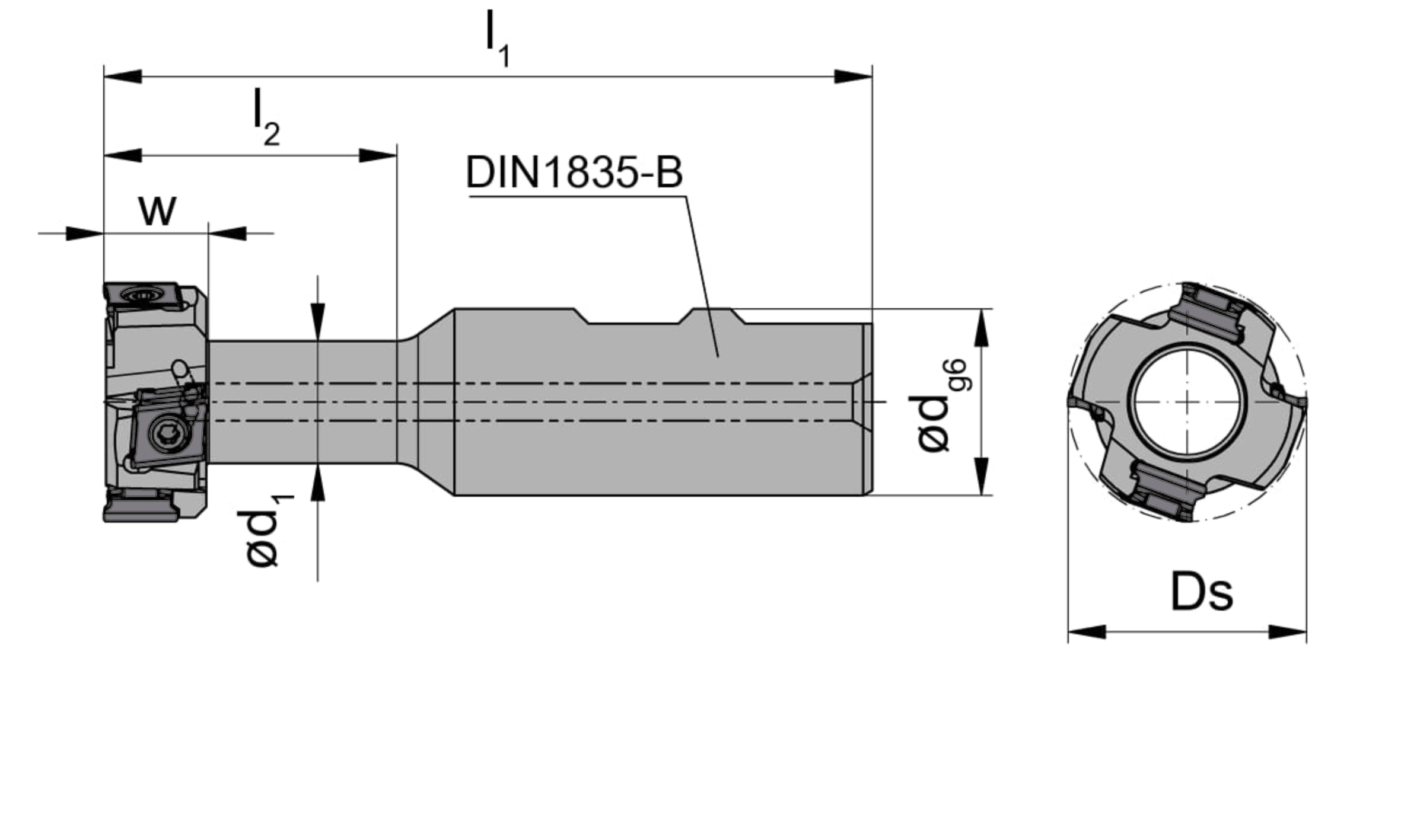

Shank DIN1835-B| Cutting diameter (Ds) | 32 |
|---|---|
| Left hand indexable insert (linke WSP) |
Henter tekniske filer …
Kategorier:Milling shank system M409 Tangential milling
Henter matchende værktøj…
| 2x L409.093.U... |
| Neck diameter (d1) | 16.4 |
|---|
| Number of revolutions maximum (nmax) | 15600 |
|---|
| Number of teeth effective (Zeff) | 2 |
|---|
| Number of teeth (Z) | 4 |
|---|
| Right hand indexable insert (rechte WSP) | 2x R409.093.U... |
|---|
| Shank diameter (d) | 25 |
|---|
| Size of groove (a) | 16.9 |
|---|
| Total length (l) | 103 |
|---|
| Total length insert (l1) | 103 |
|---|
| Working length, Neck length, Extension length (l3) | 39 |
|---|
| form | B |
|---|
| number-of-teeth | 4 |
|---|
