Milling shank system M409 Tangential milling

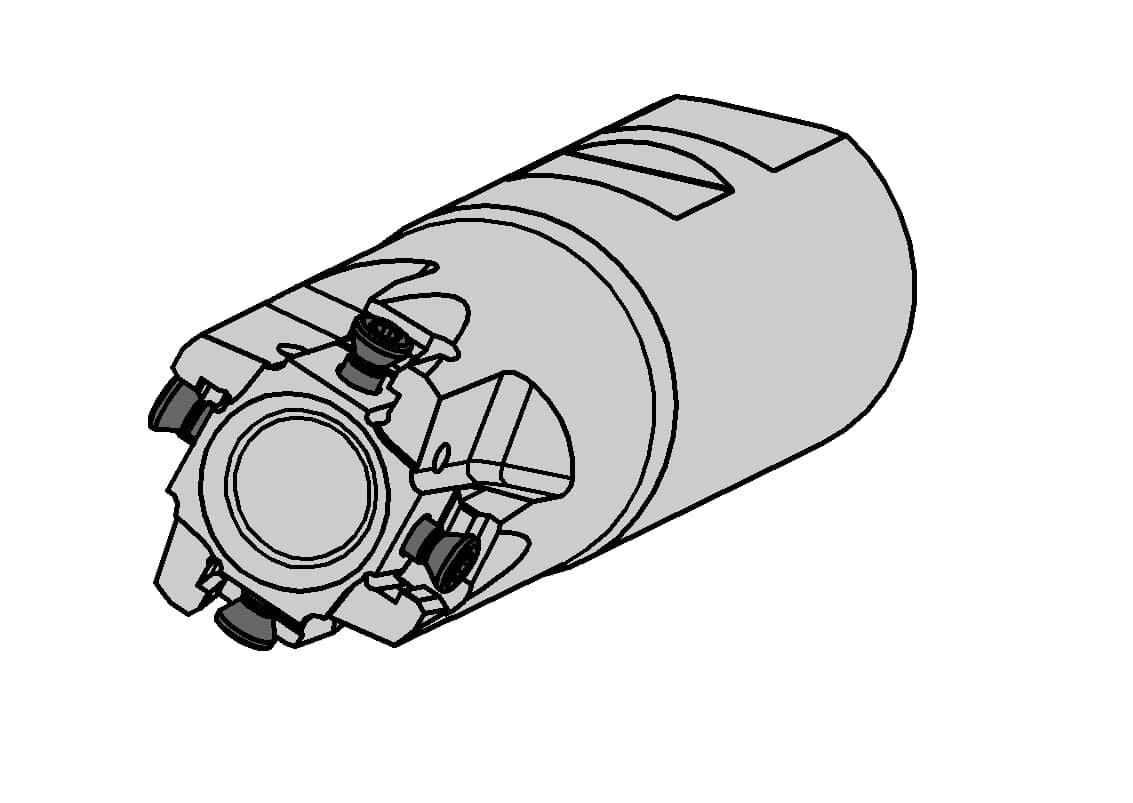

1 / 2: HORN M409.040.D32.6.05B
Corner cutting
Internal cooling

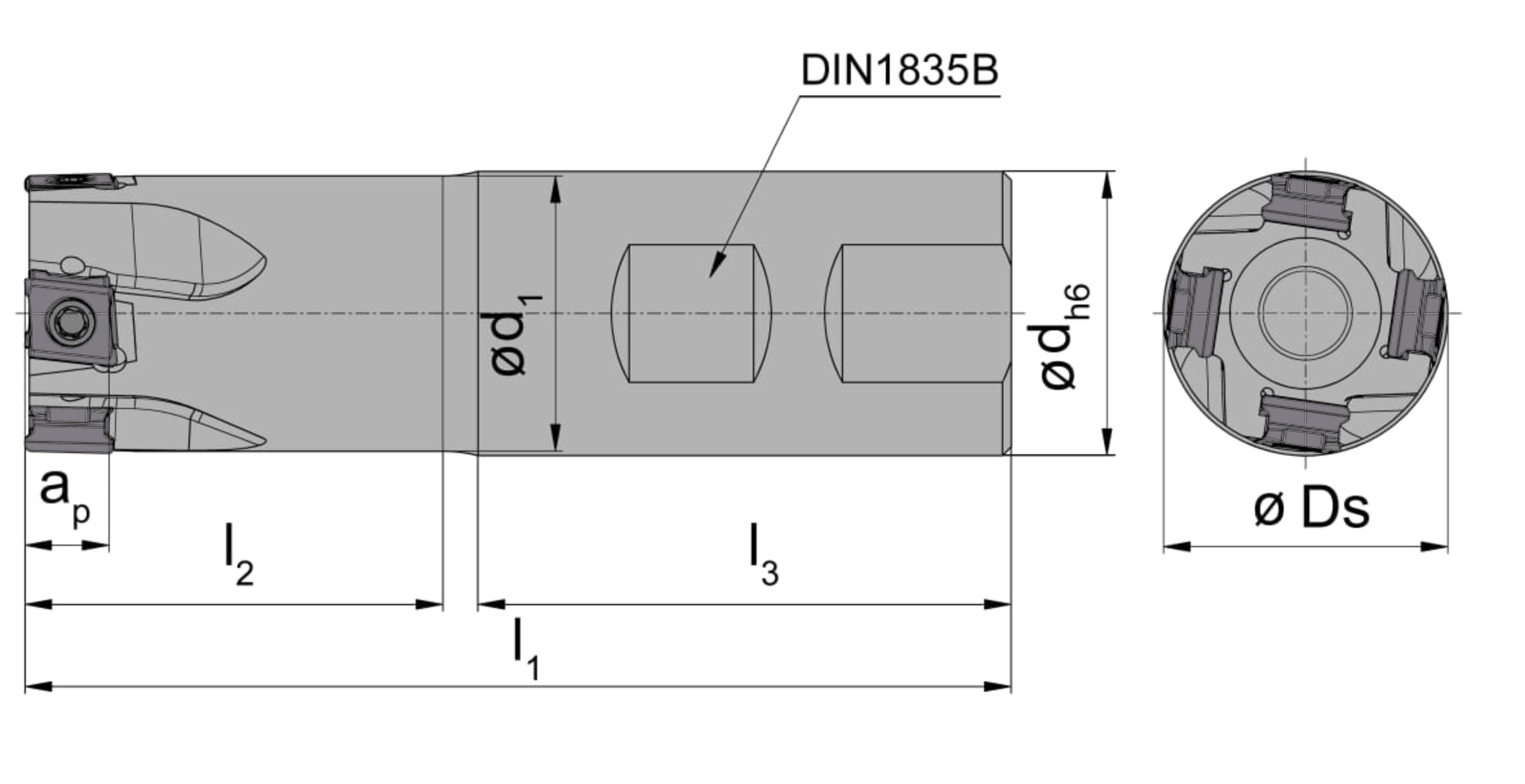

Shank DIN1835-B| Cutting depth (ap) | 9.3 |
|---|---|
| Cutting diameter (Ds) | 40 |
Henter tekniske filer …
Kategorier:Milling shank system M409 Tangential milling
Henter matchende værktøj…
| Form _Form_ | B |
|---|
| Neck diameter (d1) | 39 |
|---|
| Number of revolutions maximum (nmax) | 13900 |
|---|
| Number of teeth (Z) | 5 |
|---|
| Shank diameter (d) | 32 |
|---|
| Tension length (l3) | 60 |
|---|
| Total length (l) | 111 |
|---|
| Total length insert (l1) | 111 |
|---|
| Working length, Neck length, Extension length (l3) | 47 |
|---|
| number-of-teeth | 5 |
|---|
