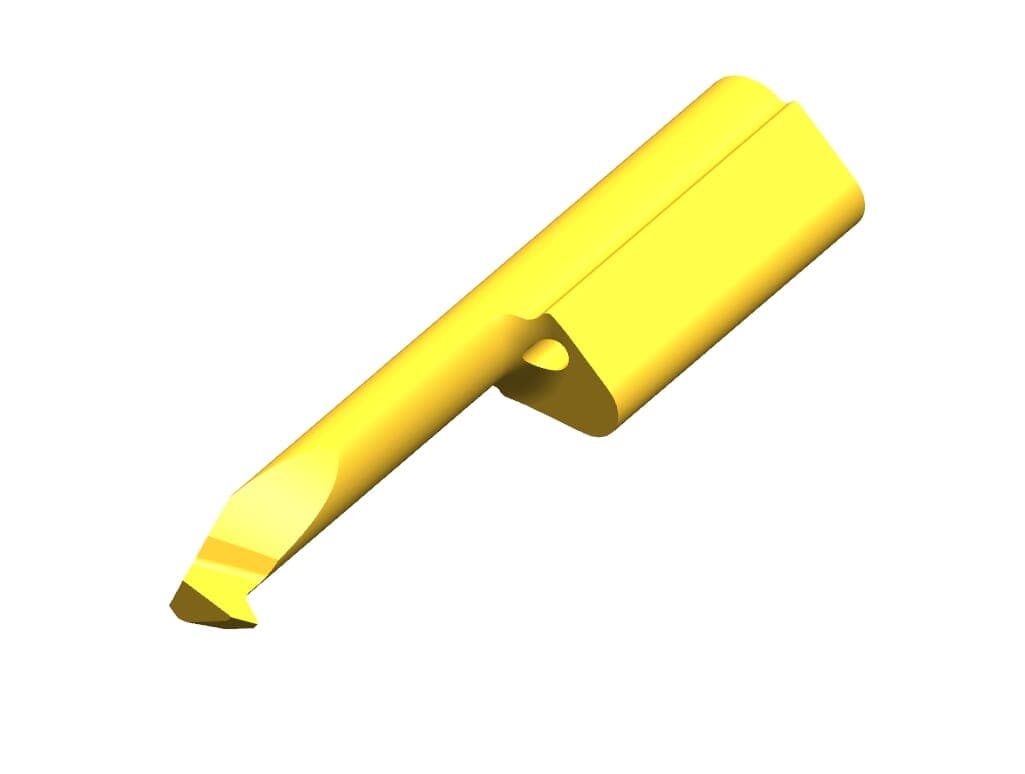

HORN R105.0407.1.4 TN35 · JR Tool

Threading metric ISO thread (internal), partial profile

HORN R105.0407.1.4 TN35

Varenr.: HR105040714TN35

HORN R105.0407.1.4 TN35

Tekniske billeder


60° thread
Internal thread
Partial profile thread

Internal cooling

Tekniske filer

Henter tekniske filer …

Kategorier:Threading metric ISO thread (internal), partial profile

Matchende værktøj

Henter matchende værktøj…

Cutting insert total length (l5)	25
Cutting insert width (a)	3.7
Maximum pitch (Pmax)	0.75
Neck diameter (d)	2.7
Neck length (l2)	10
Number of teeth (Z)	1
Pitch (P)	0.5
Setting length (E)	0.45
Smallest bore diameter (Da min)	4
Width of blank (b)	6.4
