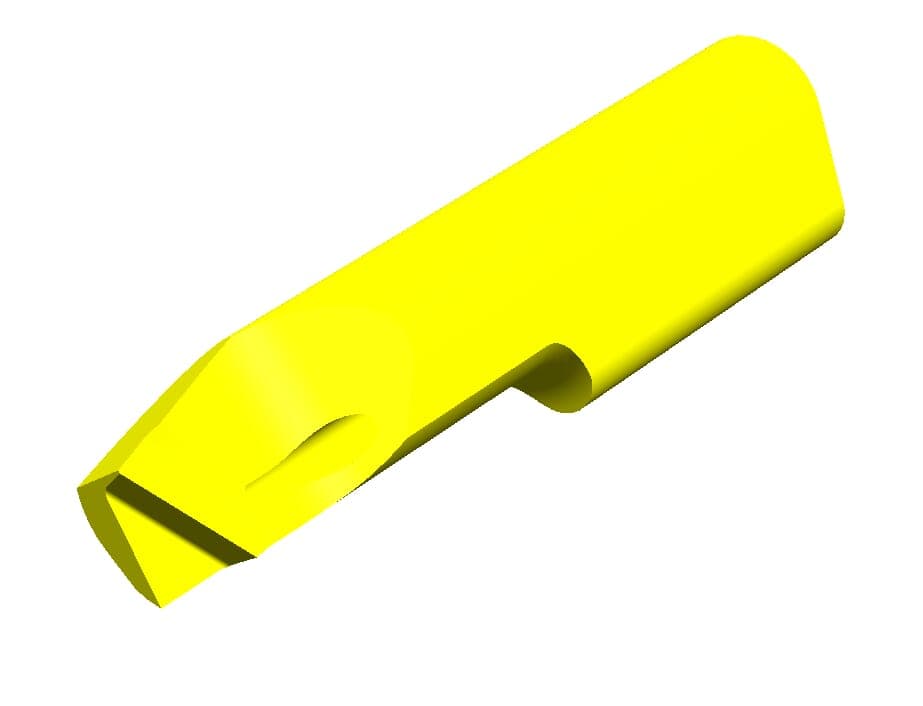

| _application | /conversions/R105052325B_PICTO.JPG |
|---|---|
| _icon | cbn.jpg; ik_generell.jpg; innen_bohrung_ausdrehen.jpg |
| _download | /documents/R105053326B_20210707_200829721.DXF; /documents/R105053326B_20230113_232836439.STP |
| _drawing | /conversions/105XB_20170102_132104402.JPG |
| _main_image | /conversions/R105053326B.JPG |
| eclass shortcut | 21-18-20-11 |
| Maximum depth of groove (tmax) | 0.15 |
| eclass | 21-18-20-11:Wechselplatte (ADR158005) |
| DIN_SSC | HORN-10512595N |
| ISO-SSC | HORN105125$95N$$$$$ |
| Katalog-SSC | 105125 |
| Head size (a) | 5.7 |
| Neck length (l2) | 15 |
| Neck diameter (d) | 5.3 |
| productnr-sap | R105053326BCB10 |
| Total length (l5) | 30 |
| Top radius (r) | 0.2 |
| Smallest bore diameter (Da min) | 6 |
| Width of blank (b) | 7 |
| Free angle (α) | 5 |
