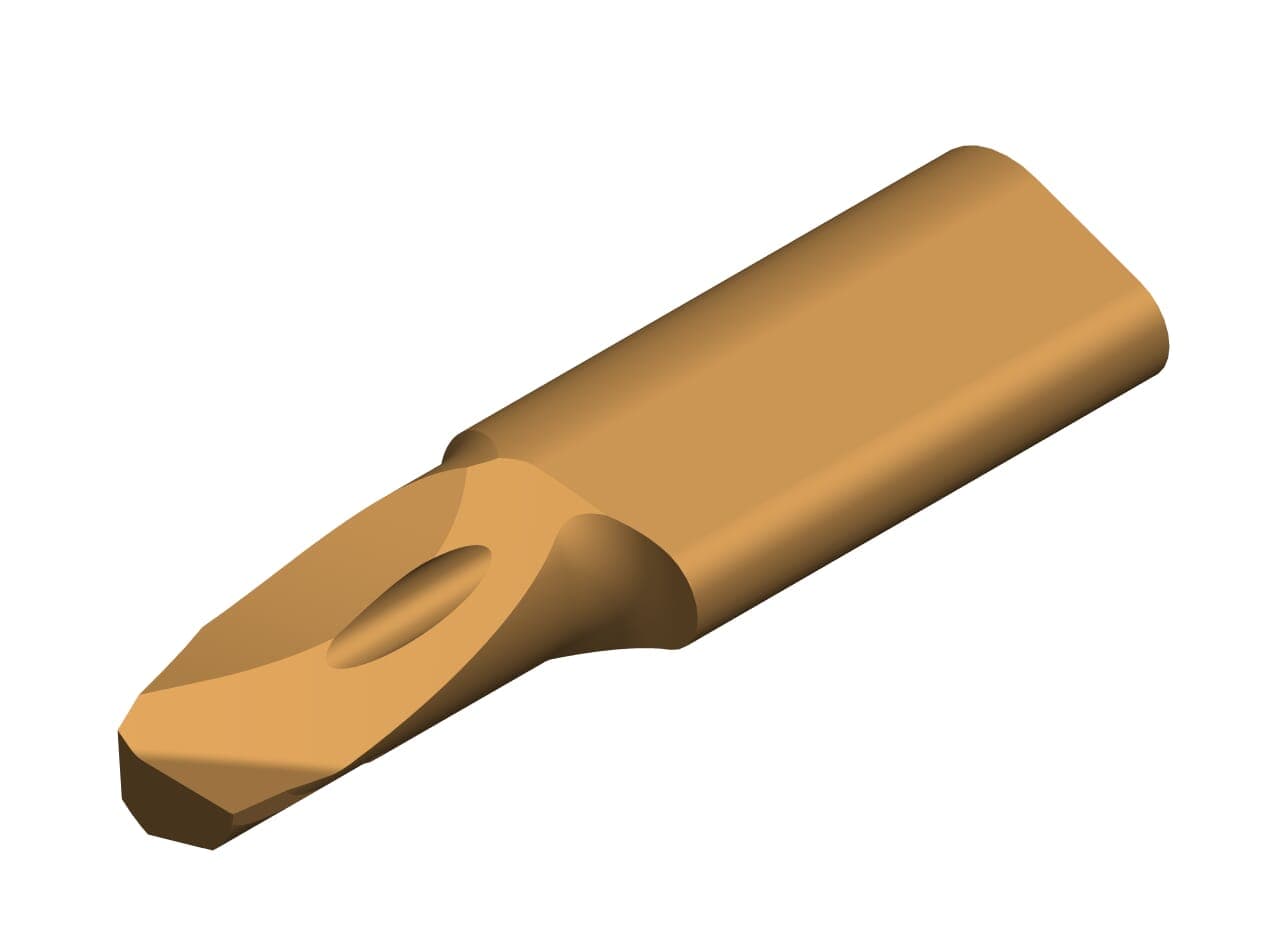

HORN R105.1023.005.1.5 TH35 · JR Tool

Inserts 105 - Internal boring from 4.0 mm - reinforced version

HORN R105.1023.005.1.5 TH35

Varenr.: HR105102300515TH35

HORN R105.1023.005.1.5 TH35

Tekniske billeder


Boring 8°/11°

Tekniske specifikationer
Head size (a)	4.7
Maximum depth of groove (tmax)	0.15
Neck diameter (d)	4.4
Neck length (l2)	10
Smallest bore diameter (Da min)	5
Top radius (r)	0.05
Total length (l)	25
Total length (l5)	25

Tekniske filer

Henter tekniske filer …

Kategorier:Inserts 105 - Internal boring from 4.0 mm - reinforced version
