Cutting insert 105 from diameter 2 mm

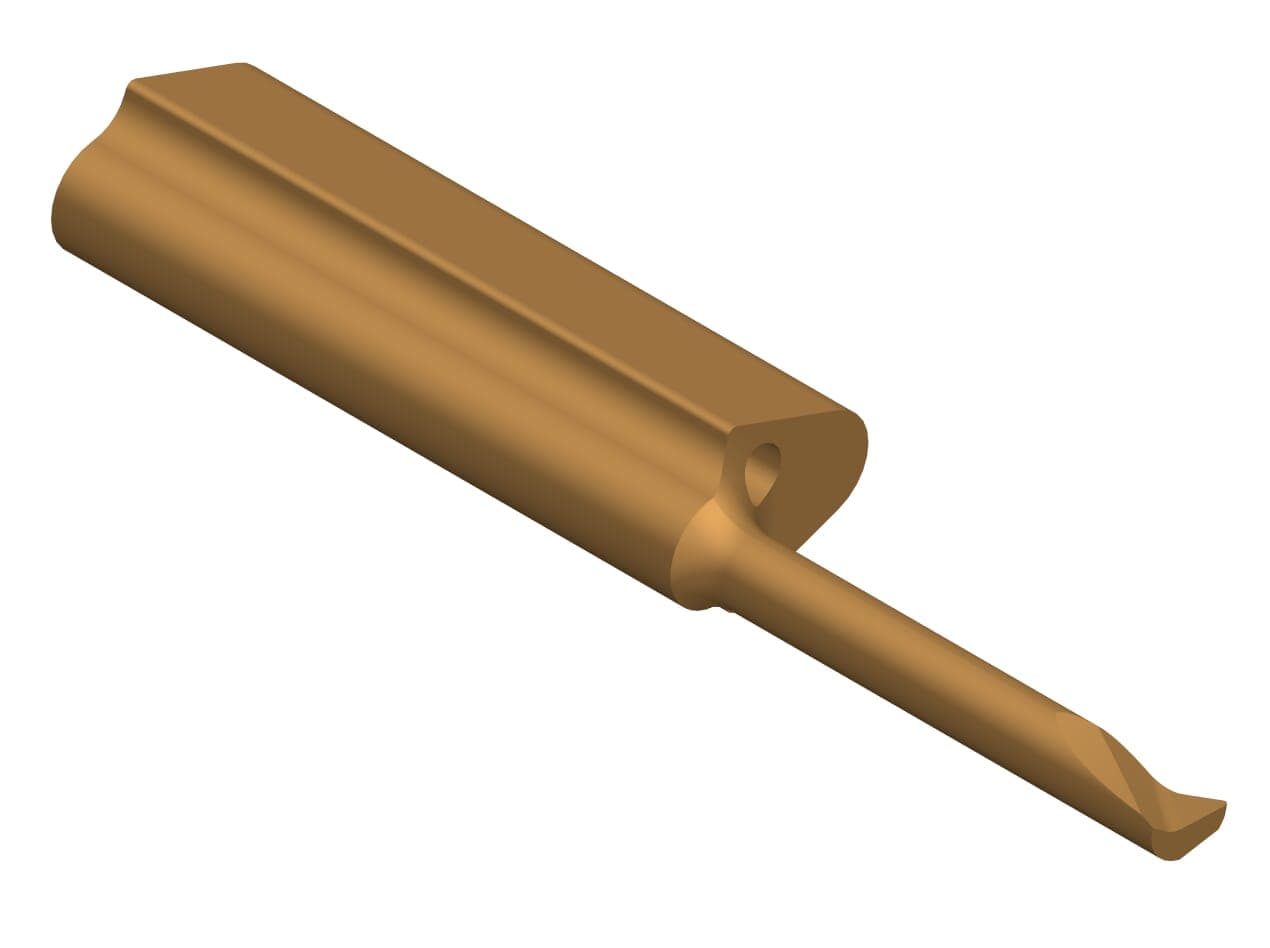

1 / 2: HORN R105.1809.01.2.2 TI25
Internal boring
Internal profiling and chamfering
Internal cooling| Head size (a) | 1.9 |
|---|---|
| Maximum depth of groove (tmax) | 0.15 |
Henter tekniske filer …
Kategorier:Cutting insert 105 from diameter 2 mm
Henter matchende værktøj…
| Neck diameter (d) |
|---|
| 1.6 |
| Neck length (l2) | 12 |
|---|
| Smallest bore diameter (Da min) | 2 |
|---|
| Top radius (r) | 0.1 |
|---|
| Total length (l) | 30 |
|---|
| Total length (l5) | 30 |
|---|
| Width of blank (b) | 5.9 |
|---|
