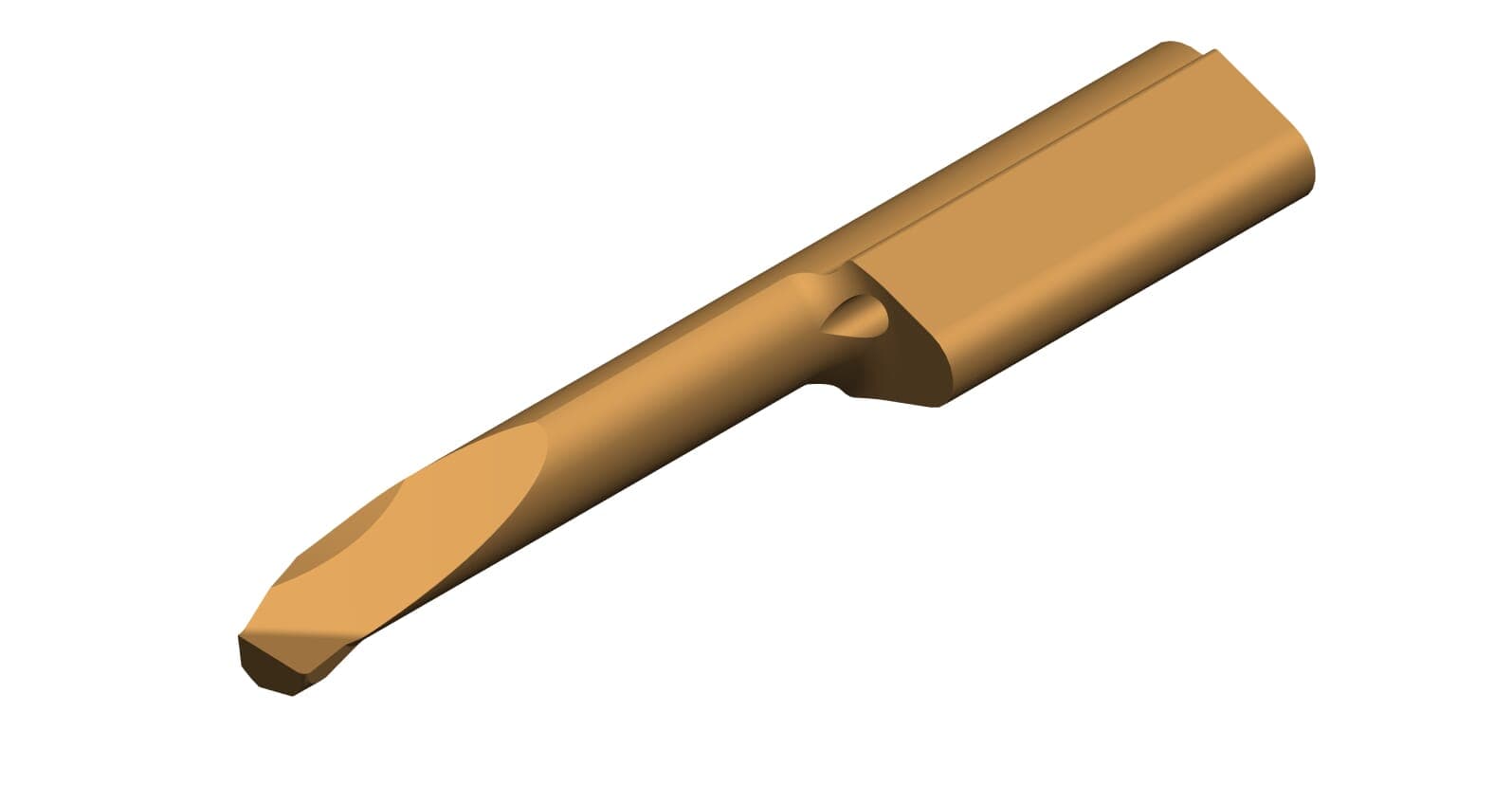

HORN R105.1819.3.4 TI25 · JR Tool

Cutting insert 105 from diameter 3 mm Radius 0.05-0.1

HORN R105.1819.3.4 TI25

Varenr.: HR105181934TI25

HORN R105.1819.3.4 TI25

Tekniske billeder


Boring 8°/21°

Tekniske specifikationer
Head size (a)	3.7
Maximum depth of groove (tmax)	0.3
Neck diameter (d)	2.9
Neck length (l2)	20
Smallest bore diameter (Da min)	4
Top radius (r)	0.2
Total length (l)	35
Total length (l5)	35

Tekniske filer

Henter tekniske filer …

Kategorier:Cutting insert 105 from diameter 3 mm Radius 0.05-0.1
