Inserts 105 - Internal boring from 4.0 mm - Geometry .H

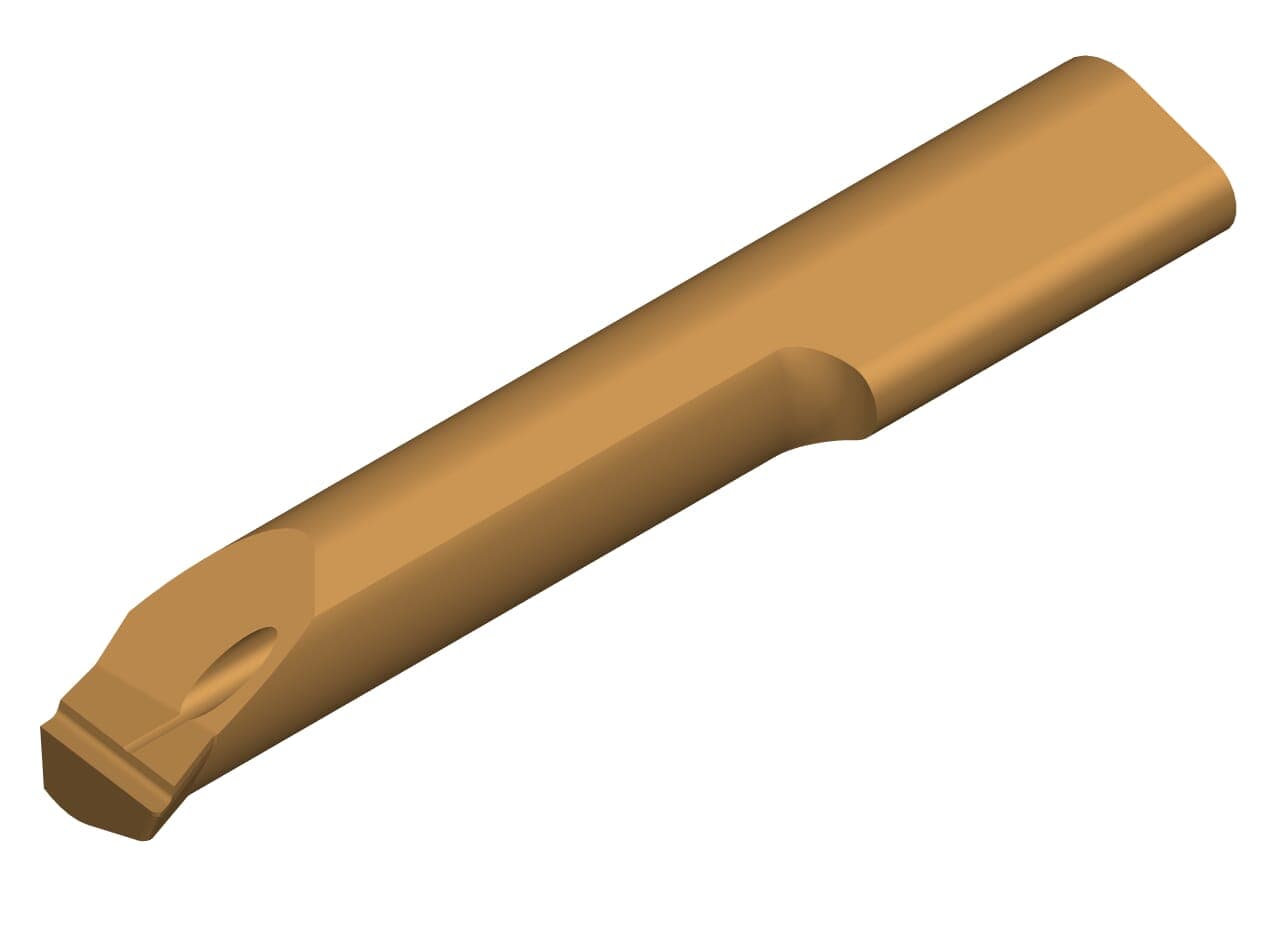

1 / 2: HORN R105.1840.4.H7 TH35
Internal boring
Internal profiling and chamfering
Geometry H
Internal coolingHenter tekniske filer …
Kategorier:Inserts 105 - Internal boring from 4.0 mm - Geometry .H
Henter matchende værktøj…
| Head size (a) | 6.4 |
|---|---|
| Maximum depth of groove (tmax) | 0.5 |
| Neck diameter (d) | 5.2 |
| Neck length (l2) | 25 |
| Smallest bore diameter (Da min) | 7 |
| Top radius (r) | 0.2 |
| Total length (l) | 40 |
| Total length (l5) | 40 |
| Width of blank (b) | 7 |
