Cutting Insert 105 from Diameter 4 mm Radius 0.15

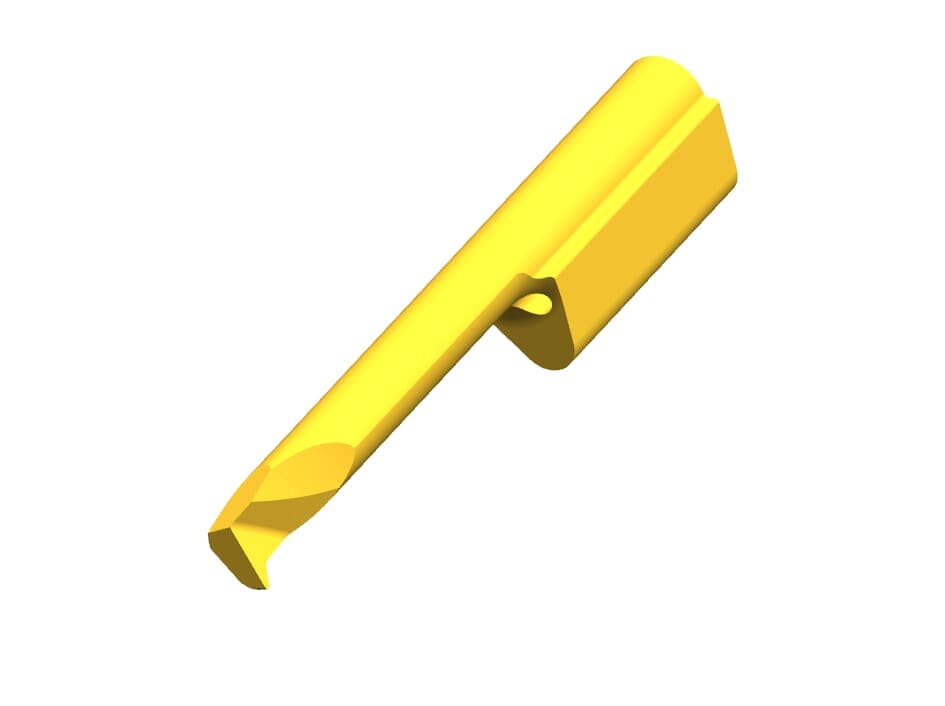

1 / 2: HORN R105.4719.3.4 TH35
Internal bore contouring
Internal profiling and chamfering
Internal cooling| Head size (a) | 3.7 |
|---|---|
| Maximum depth of groove (tmax) | 0.6 |
Henter tekniske filer …
Kategorier:Cutting Insert 105 from Diameter 4 mm Radius 0.15
Henter matchende værktøj…
| Neck diameter (d) | 2.9 |
|---|
| Neck length (l2) | 20 |
|---|
| Smallest bore diameter (Da min) | 4 |
|---|
| Top radius (r) | 0.15 |
|---|
| Total length (l) | 35 |
|---|
| Total length (l5) | 35 |
|---|
| Width of blank (b) | 6.4 |
|---|
