Inserts 105 - Internal boring from 3.0 mm - right angle

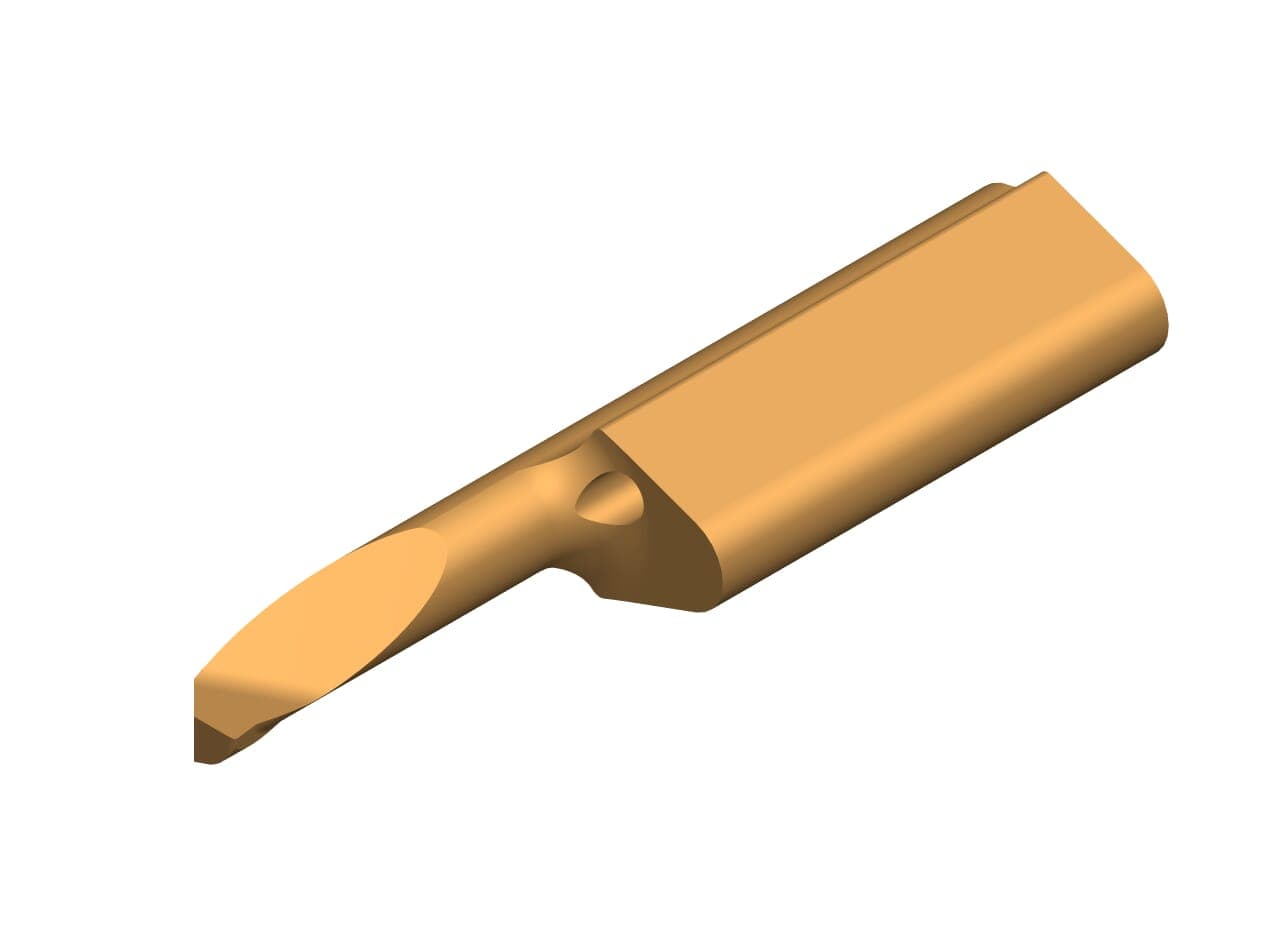

1 / 2: HORN R105.9013.01.1.3 TH35
Internal boring
Internal cooling| Head size (a) | 2.6 |
|---|---|
| Maximum depth of groove (tmax) | 0.15 |
| Neck diameter (d) | 2.3 |
| Neck length (l2) | 10 |
| Smallest bore diameter (Da min) |
Henter tekniske filer …
Kategorier:Inserts 105 - Internal boring from 3.0 mm - right angle
Henter matchende værktøj…
| 3 |
| Top radius (r) | 0.1 |
|---|
| Total length (l) | 25 |
|---|
| Total length (l5) | 25 |
|---|
| Width of blank (b) | 5.9 |
|---|
