HORN R105.NP18.3.6 TN35 · JR Tool

Threading inch thread (internal), partial profile

HORN R105.NP18.3.6 TN35

Varenr.: HR105NP1836TN35

HORN R105.NP18.3.6 TN35

Tekniske billeder


Internal thread
NPT/NPTF thread
Partial profile thread

Internal cooling

Tekniske filer

Henter tekniske filer …

Kategorier:Threading inch thread (internal), partial profile

Matchende værktøj

Henter matchende værktøj…

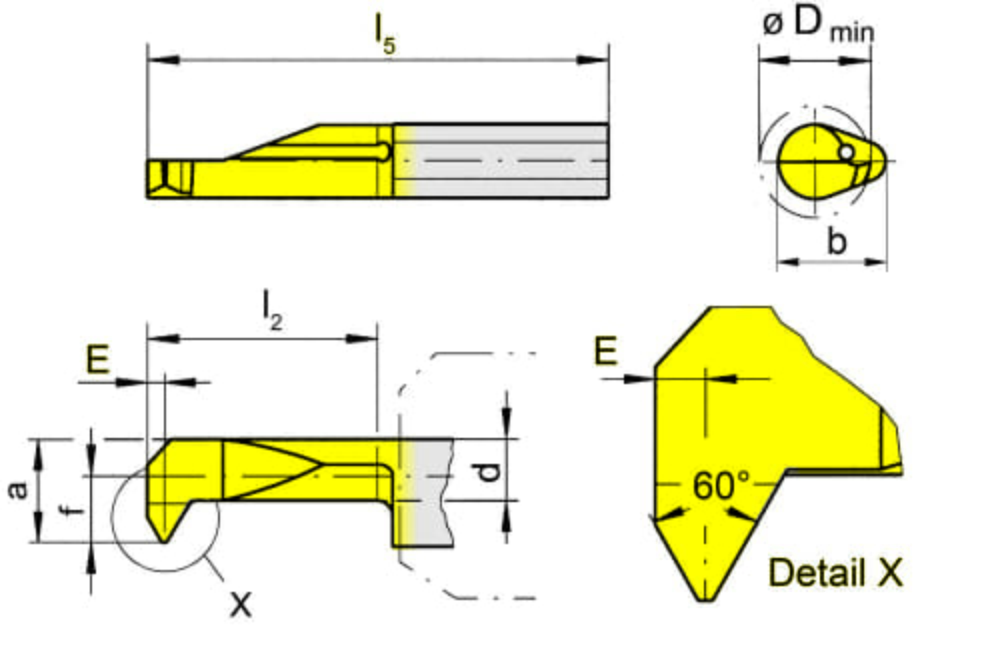

Cutting insert total length (l5)	35
Cutting insert width (a)	5.7
Neck diameter (d)	3.7
Neck length (l2)	20
Number of teeth (Z)	1
Setting length (E)	1
Smallest bore diameter (Da min)	6
Threads per inch (TPI)	18
Width of blank (b)	7
