Threading inch thread (internal), partial profile

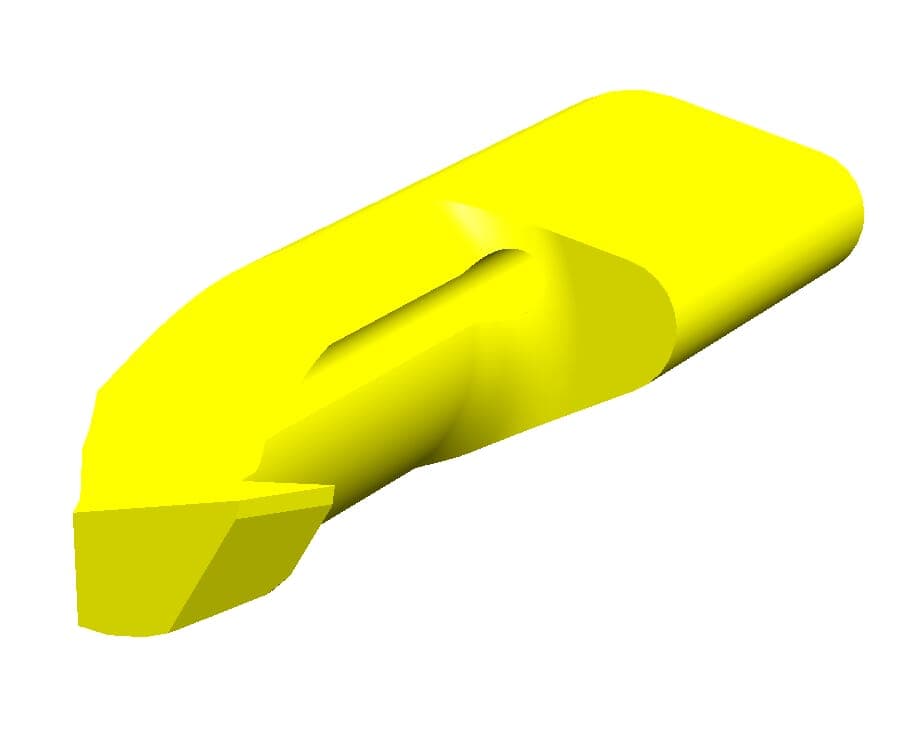

1 / 2: HORN R105.NP27.2.6 TN35
Internal thread
NPT/NPTF thread
Partial profile thread
Internal coolingHenter tekniske filer …
Kategorier:Threading inch thread (internal), partial profile
Henter matchende værktøj…
| Cutting insert total length (l5) | 30 |
|---|---|
| Cutting insert width (a) | 5.7 |
| Neck diameter (d) | 3.7 |
| Neck length (l2) | 15 |
| Number of teeth (Z) | 1 |
| Setting length (E) | 0.8 |
| Smallest bore diameter (Da min) | 6 |
| Threads per inch (TPI) | 27 |
| Width of blank (b) | 7 |
